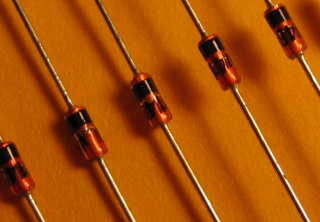

1N4148 150mA 100V
The 1N4148 is a high-speed switching diode commonly used in various electronic circuits for its fast response time and reliability. It is widely utilized in applications requiring high-speed switching, such as signal processing, digital circuits, and communication devices. The 1N4148 diode is known for its low forward voltage drop and high reverse voltage capability.
Key Features:
- High-speed switching
- Low forward voltage drop
- High reverse voltage capability
- Reliable and durable
- Low leakage current
- Max Forward Current (If): 150mA
- Max Reverse Voltage (Vr): 100V
- Forward Voltage (Vf): 1V @ 10mA
- Reverse Recovery Time (trr): 4ns
- Max Power Dissipation (Pd): 500mW
- Junction Temperature Range: -65°C to +200°C
- Package Type: DO-35
- High-speed switching circuits
- Signal processing
- Digital circuits
- Communication devices
- Pulse and waveform shaping circuits
- Clamping and protection circuits
- Connect the anode (A) to the positive side of the circuit and the cathode (K) to the negative side.
- Ensure the current and voltage ratings are within the specified limits to avoid damage.
- Use appropriate heat sinking or cooling if the diode is operating near its maximum power dissipation.
- Avoid exceeding the maximum current and voltage ratings.
- Ensure proper polarity to prevent reverse breakdown.
- Handle with care to avoid physical damage to the diode leads.
