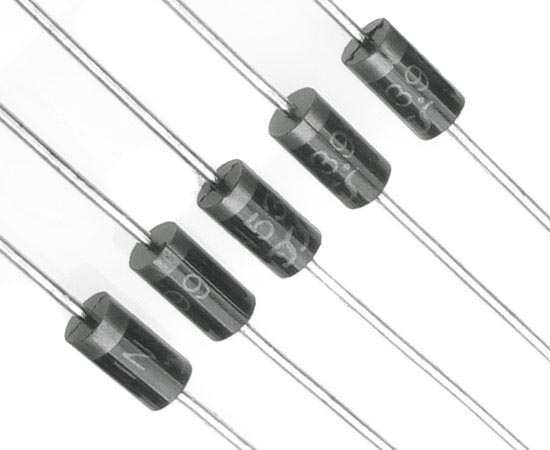

The 1N5399 is a high-voltage rectifier diode designed for use in power rectification applications. It is capable of handling high reverse voltages and moderate currents, making it suitable for use in power supplies, battery chargers, and other high-voltage applications. Key Features:
  • High reverse voltage rating
  • Medium forward current capability
  • Low forward voltage drop
  • Suitable for high-voltage rectification
  • Reliable performance in various power circuits
Technical Specifications:
  • Max Forward Current (If): 1.5A
  • Max Reverse Voltage (Vr): 1000V
  • Forward Voltage (Vf): 1.1V @ 1.5A
  • Max Surge Current (Ifsm): 100A
  • Max Power Dissipation (Pd): 3W
  • Junction Temperature Range: -65°C to +175°C
  • Package Type: DO-201
Applications:
  • Power supply rectification
  • Battery chargers
  • High-voltage rectification circuits
  • DC-DC converters
  • General-purpose rectification
Usage:
  1. Connect the anode (A) to the positive terminal of the circuit and the cathode (K) to the negative terminal.
  2. Ensure the diode operates within its specified voltage and current ratings.
  3. Use appropriate heat sinking if operating near maximum power dissipation.
Caution:
  • Do not exceed the maximum rated current or reverse voltage to avoid damage.
  • Ensure correct polarity to prevent reverse breakdown.
  • Handle carefully to avoid damage to the diode leads.
Datasheet: For detailed technical specifications, refer to the 1N5399 Datasheet.
