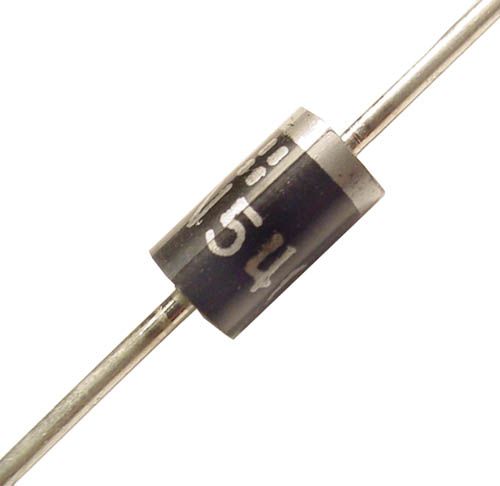

1N5408 3A 1000v
The 1N5408 is a high-current rectifier diode designed for rectification and power supply applications. It features a high maximum reverse voltage rating and robust construction, making it suitable for use in demanding environments where reliability and durability are critical.
Key Features:
- High maximum reverse voltage
- High forward current capability
- Low forward voltage drop
- Robust and durable construction
- Suitable for high-current rectification applications
- Max Forward Current (If): 3A
- Max Reverse Voltage (Vr): 1000V
- Forward Voltage (Vf): 1.0V @ 3A
- Max Surge Current (Ifsm): 200A
- Max Power Dissipation (Pd): 50W
- Junction Temperature Range: -65°C to +175°C
- Package Type: DO-201
- Power supply rectification
- DC-DC converters
- Battery chargers
- Freewheeling diodes
- High-voltage rectification circuits
- Power management systems
- Connect the anode (A) to the positive side of the circuit and the cathode (K) to the negative side.
- Ensure the current and voltage ratings are within the specified limits to avoid damage.
- Use proper heat sinking if operating near the maximum power dissipation.
- Do not exceed the maximum current and voltage ratings.
- Ensure correct polarity to prevent reverse breakdown.
- Handle with care to avoid physical damage to the diode leads.
