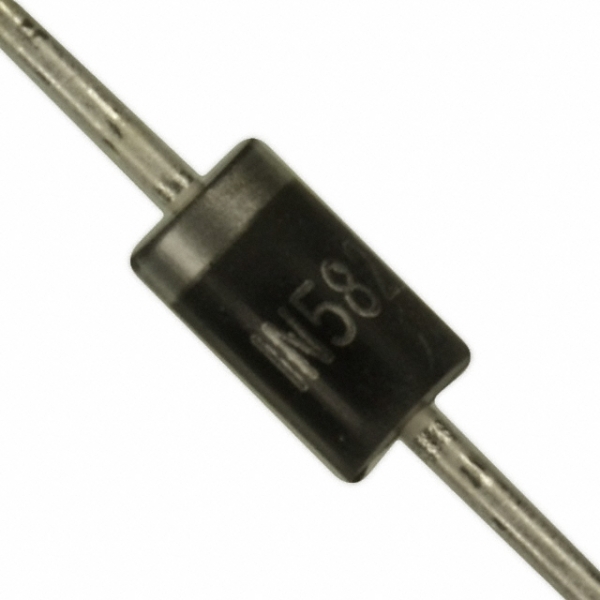

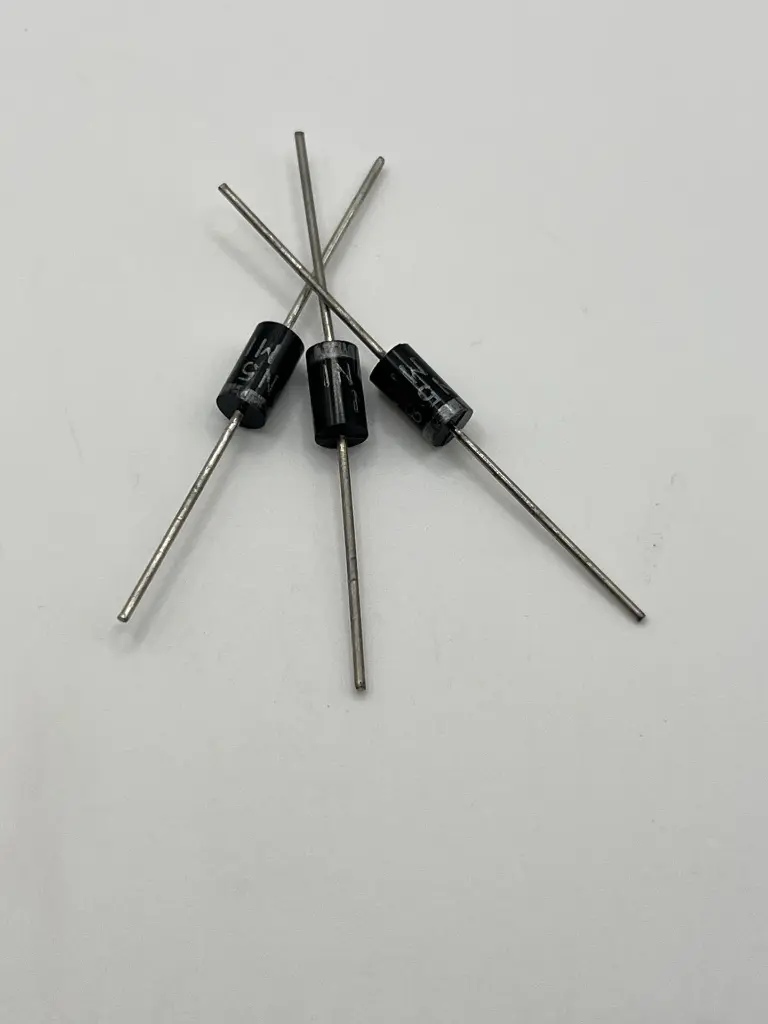

1N5822
The 1N5822 is a high-performance Schottky rectifier diode designed for high-speed switching and rectification applications. It features a low forward voltage drop and high surge current capability, making it ideal for use in power supplies, DC-DC converters, and other high-current applications where efficiency and reliability are crucial.
Key Features:
- Low forward voltage drop
- High surge current capability
- Fast recovery time
- Low leakage current
- Robust and reliable construction
- Max Forward Current (If): 3A
- Max Reverse Voltage (Vr): 40V
- Forward Voltage (Vf): 0.5V @ 3A
- Max Surge Current (Ifsm): 100A
- Max Power Dissipation (Pd): 40W
- Junction Temperature Range: -65°C to +125°C
- Package Type: DO-201
- Power supply rectification
- DC-DC converters
- Battery chargers
- Freewheeling diodes
- High-speed switching circuits
- Power management systems
- Connect the anode (A) to the positive side of the circuit and the cathode (K) to the negative side.
- Ensure the current and voltage ratings are within the specified limits to avoid damage.
- Use proper heat sinking if operating near the maximum power dissipation.
- Avoid exceeding the maximum current and voltage ratings.
- Ensure correct polarity to prevent reverse breakdown.
- Handle with care to avoid physical damage to the diode leads.
