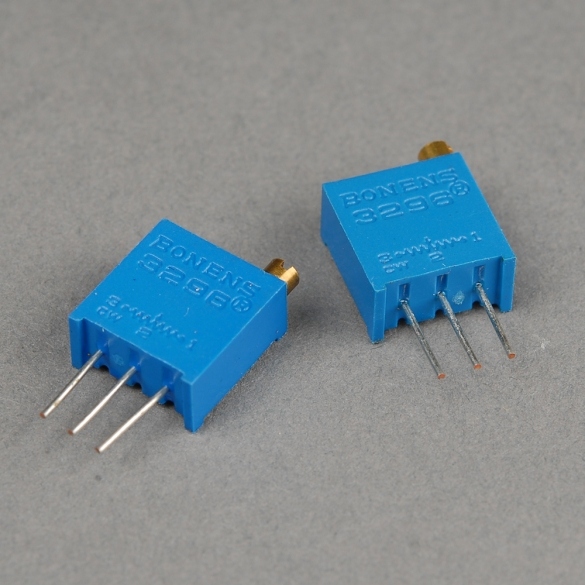

104 100KΩ potentiometer/variable resistor
This content will be shared across all product pages.
The 104 100KΩ potentiometer is a three-terminal variable resistor designed for adjustable resistance in electronic circuits. It is ideal for applications requiring precise control of electrical parameters, such as volume adjustments in audio devices, calibration settings, and tuning circuits. The potentiometer can be adjusted manually using a knob or screwdriver.
Key Features:
- Adjustable resistance up to 100KΩ
- Three-terminal design for versatile applications
- Compact and durable construction
- Smooth and precise adjustment
- Suitable for both analog and digital circuits
- Can be mounted on a PCB or panel
- Resistance: 100KΩ
- Tolerance: ±20%
- Power Rating: 0.25W (1/4W)
- Type: Rotary potentiometer
- Adjustment Type: Top adjust
- Shaft Length: 15mm
- Shaft Diameter: 6mm
- Mounting Type: Through hole
- Dimensions: 24mm x 24mm x 10mm
- Material: Carbon film
- Audio volume controls
- Light dimmers
- Signal conditioning
- Adjustable power supplies
- Calibration and tuning circuits
- Variable speed motor control
- Sensor adjustments
- Connect the three terminals to your circuit: one to the input voltage, one to ground, and the wiper (middle terminal) to the output.
- Adjust the potentiometer using the knob or screwdriver to achieve the desired resistance.
- Use the output voltage to control or adjust the connected device or circuit.
- Avoid exceeding the power rating to prevent damage.
- Handle with care to avoid damaging the adjustment mechanism.
- Ensure proper connection to prevent short circuits.
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
