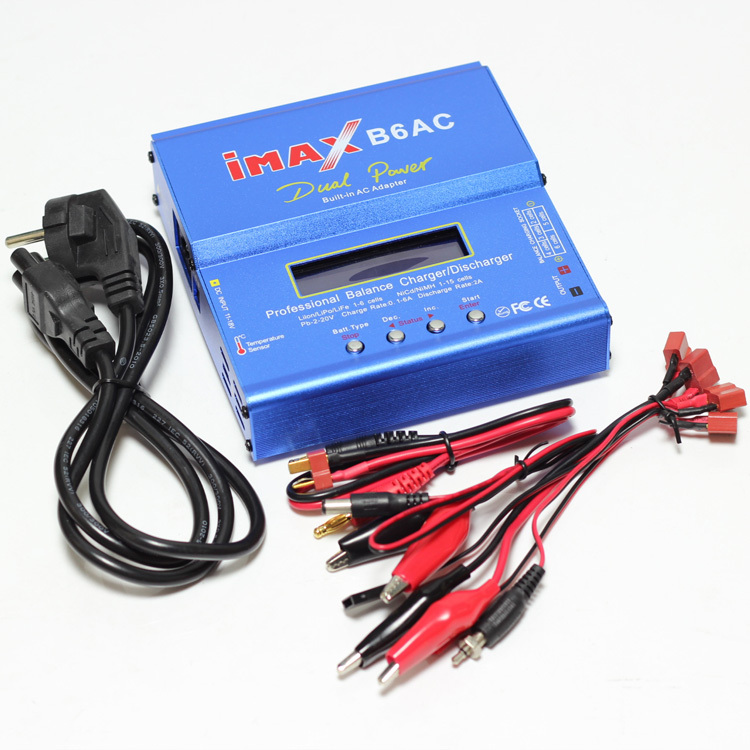

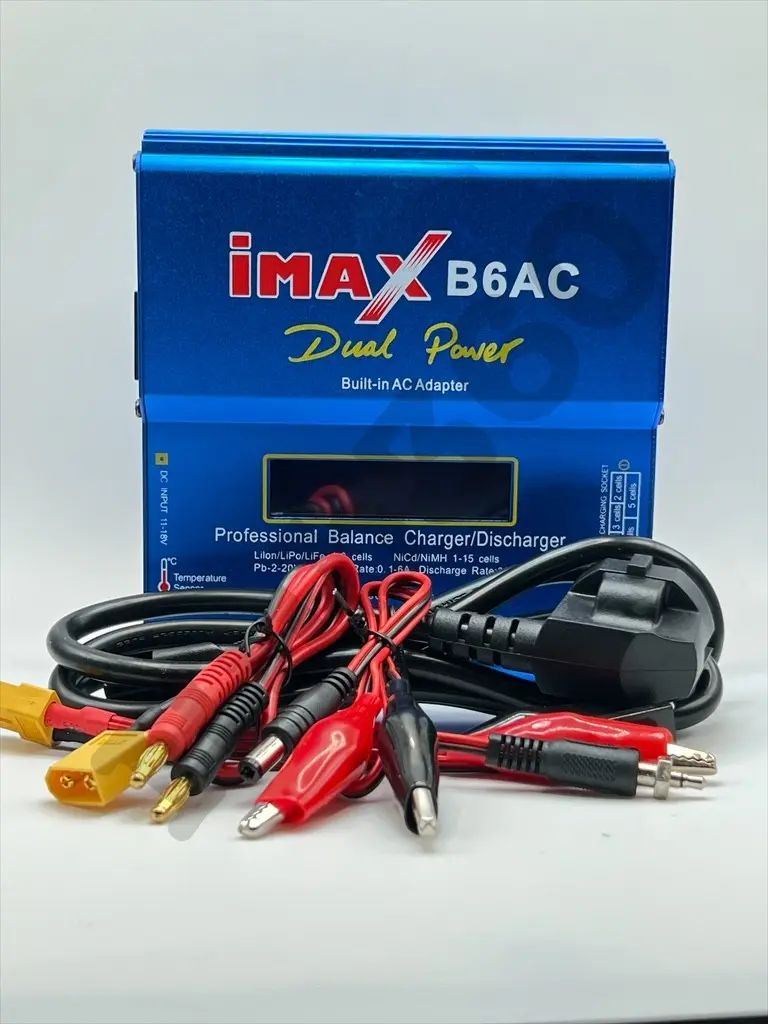

IMAX B6AC Lipo charger
The IMAX B6AC LiPo Charger is a versatile and high-performance charger designed for charging a wide variety of battery types, including LiPo, LiFe, Li-Ion, NiMH, NiCd, and Pb batteries. It features dual power modes (AC/DC) for convenient charging at home or in the field. The charger is equipped with a range of safety features and programming options to ensure safe and efficient charging.
Key Features:
- Compatible with multiple battery types: LiPo, LiFe, Li-Ion, NiMH, NiCd, and Pb
- Dual power modes: AC (100-240V) and DC (11-18V)
- Integrated balance charging for LiPo batteries
- Multiple safety features: overcharge protection, short circuit protection, and reverse polarity protection
- User-friendly interface with LCD display
- Adjustable charging current (0.1A to 6A)
- Storage mode for LiPo batteries to maintain optimal voltage
- Data storage and loading functions
- Input Voltage:
- AC: 100-240V
- DC: 11-18V
- Output Power: Maximum 50W
- Charging Current Range: 0.1A to 6A
- Discharging Current Range: 0.1A to 2A
- NiMH/NiCd Battery Cell Count: 1-15 cells
- LiPo/LiFe/Li-Ion Cell Count: 1-6 cells
- Pb Battery Voltage: 2V to 20V
- Balance Current: 300mA/cell
- Weight: Approximately 632g
- Dimensions: 135mm x 144mm x 36mm
- RC Hobbyists: Charging batteries for RC cars, helicopters, drones, and boats.
- Model Airplanes: Maintaining and charging batteries for model aircraft.
- Electric Vehicles: Charging small battery packs for electric bikes, scooters, and other personal electric vehicles.
- DIY Projects: Charging and maintaining batteries for various DIY electronics projects.
- Portable Electronics: Charging batteries for portable electronic devices and power banks.
- Connect the charger to a power source (AC or DC input).
- Select the appropriate battery type and charging parameters using the LCD interface.
- Connect the battery to the charger, ensuring correct polarity and balance connector (if applicable).
- Initiate the charging process and monitor the progress on the display.
- The charger will automatically stop once the battery is fully charged.
- Ensure proper handling and connection to avoid damage or injury.
- Verify correct settings and battery type before initiating the charge.
- Do not leave the charger unattended during operation.
- Follow manufacturer guidelines for safe and effective use.
