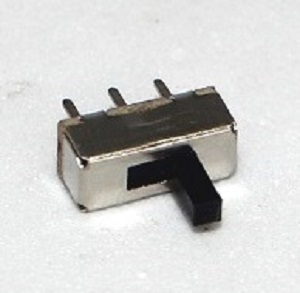

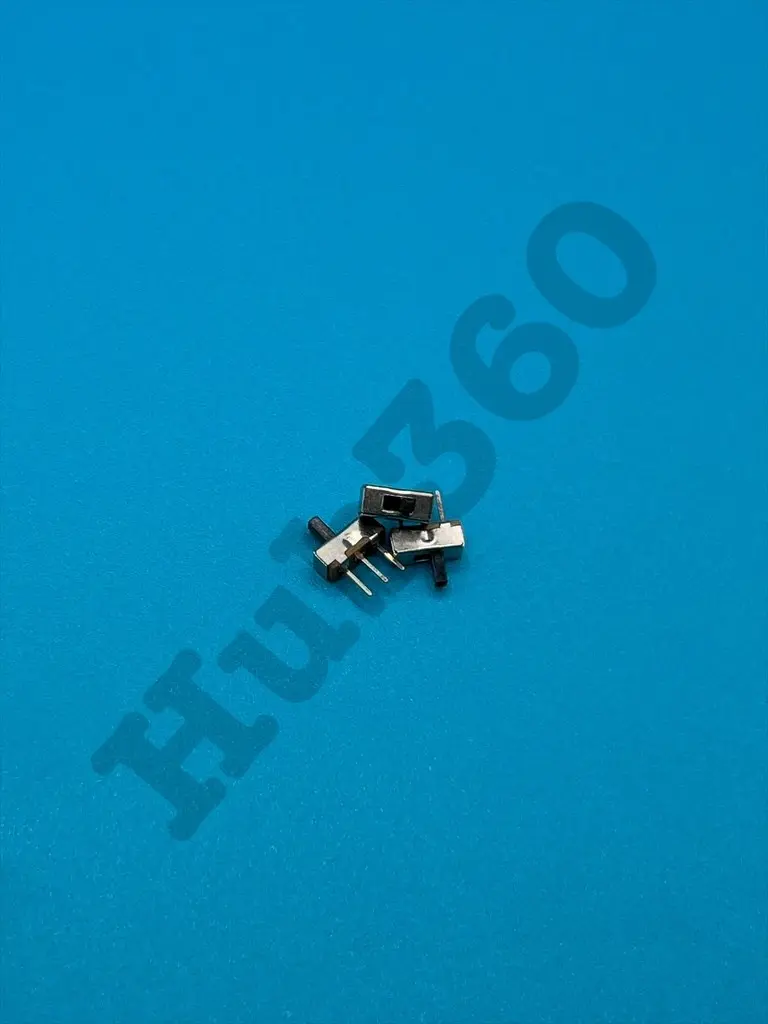

Slide switch

The Slide Switch is a type of mechanical switch that allows users to control the flow of electrical current through a circuit by sliding a lever or button between different positions. It is commonly used for ON/OFF switching, mode selection, and other applications where a simple and reliable switch is needed. Slide switches are available in various configurations, including single-pole, double-pole, and multi-position types. Key Features:

• Simple and reliable mechanical operation
• Available in multiple configurations and positions
• Compact design for easy integration into electronic devices
• Provides clear tactile feedback when switched
• Durable construction for long-term use

Technical Specifications:

• Type: Slide switch
• Number of Positions: Typically 2 (ON/OFF) or 3 (ON/OFF/ON), depending on the model
• Number of Poles: Single-pole (SPST), double-pole (DPST), or more, depending on the model
• Contact Rating: Typically 0.5A to 2A at 125V AC or 250V AC (depends on the specific switch)
• Operating Temperature Range: -20°C to +85°C
• Mechanical Life: Typically 10,000 to 50,000 cycles
• Dimensions: Varies by model, typically around 20mm x 10mm x 6mm
• Mounting Type: Through-hole or surface mount

Applications:

• Power Control: Used to turn devices on or off.
• Mode Selection: Selects different operating modes or settings in electronic devices.
• Signal Routing: Routes signals between different circuits or paths.
• DIY Projects: Ideal for hobbyist and educational projects requiring simple switching.
• Consumer Electronics: Commonly found in various consumer electronics for user controls.

Datasheet: For detailed technical information, refer to the datasheet of the specific Slide Switch model you are using.
