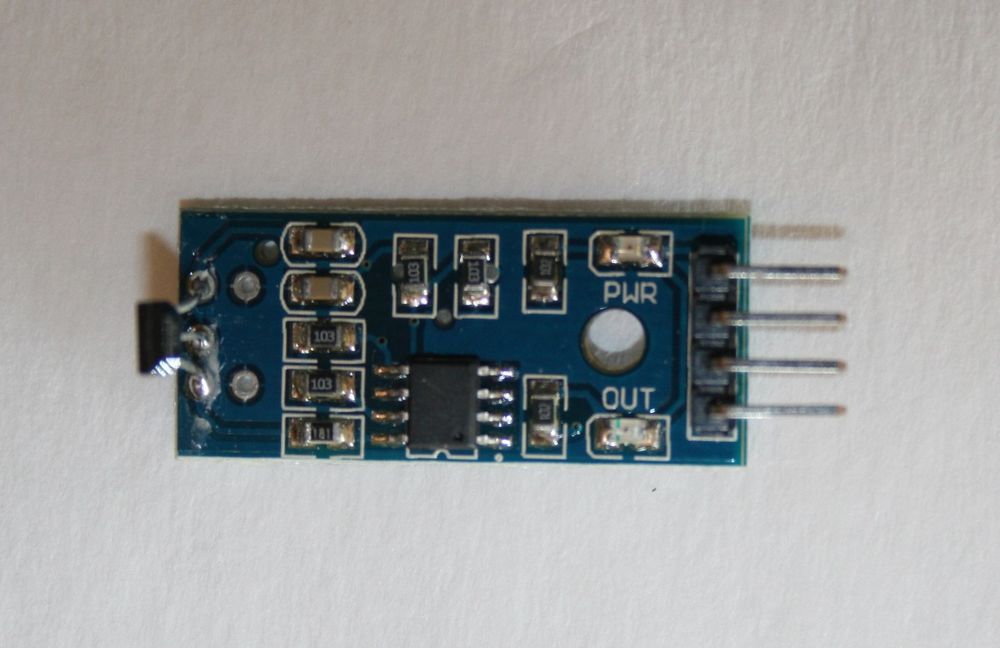

Hall Motor Speed sensor module
The Hall Motor Speed Sensor Module is designed to measure the rotational speed of motors using Hall effect technology. It detects the magnetic field generated by a rotating motor’s magnet and converts it into a digital signal. This module is commonly used in applications requiring precise speed measurement and control, such as in motor speed monitoring, RPM measurement, and speed feedback systems.
Key Features:
- Measures motor speed using Hall effect sensing
- Provides digital output proportional to motor speed
- High sensitivity to magnetic fields
- Easy to interface with microcontrollers and digital systems
- Compact and robust design for various motor types
- Sensor Type: Hall effect sensor
- Output Type: Digital pulse output (frequency proportional to motor speed)
- Supply Voltage: 5V DC (typical)
- Current Consumption: 15mA (typical)
- Response Time: Fast response suitable for high-speed motors
- Operating Temperature Range: -40°C to +85°C
- Dimensions: Varies by module, typically around 30mm x 20mm x 10mm
- Mounting Type: Typically includes mounting holes or adhesive backing
- Motor Speed Monitoring: Measures and monitors the speed of electric motors.
- RPM Measurement: Provides RPM feedback for control systems and displays.
- Speed Control Systems: Integrates with motor control systems for precise speed regulation.
- DIY Projects: Ideal for hobbyist and educational projects involving motor speed measurement.
- Industrial Automation: Used in industrial settings for speed feedback and process control.
