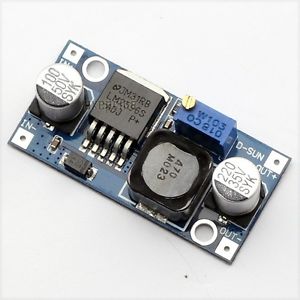

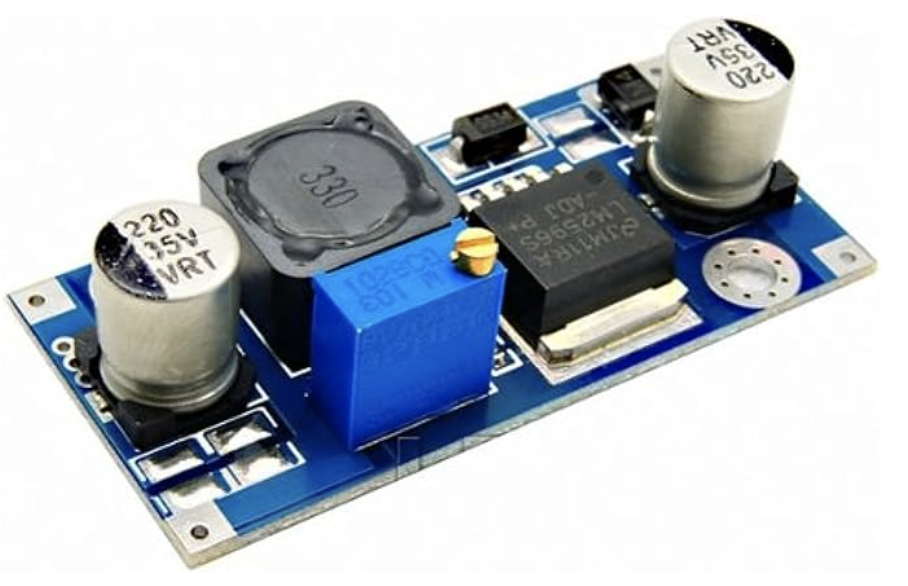

LM2596 Buck DC-DC power module
The LM2596 Buck DC-DC Power Module is a versatile step-down voltage regulator used to convert a higher input voltage to a lower, stable output voltage. It features the LM2596 integrated circuit and is widely used in various applications requiring efficient power conversion. This module is known for its high efficiency, adjustable output voltage, and ease of use.
Key Features:
- Adjustable output voltage
- High efficiency (up to 80-90%)
- Reliable and stable performance
- Easy to use and integrate
- Over-temperature and over-current protection
- Compact size
- Input Voltage Range: 4V to 40V DC
- Output Voltage Range: 1.25V to 37V DC (adjustable)
- Output Current: Up to 3A (continuous)
- Efficiency: Up to 80-90% (depends on input/output voltage and load)
- Switching Frequency: 150kHz
- Ripple and Noise: ≤ 30mV (typical)
- Operating Temperature Range: -40°C to +85°C
- Dimensions: 43mm x 22mm x 14mm (length x width x height, approximate)
- Weight: 20g
- Power Supply: Converts a higher DC voltage to a lower DC voltage for use in electronic circuits.
- Battery-Powered Devices: Provides regulated voltage for battery-operated devices.
- Prototyping: Useful in prototype development where voltage regulation is required.
- Embedded Systems: Supplies stable power to embedded systems and microcontrollers.
- DIY Projects: Ideal for hobbyists and custom electronics projects needing voltage regulation.
