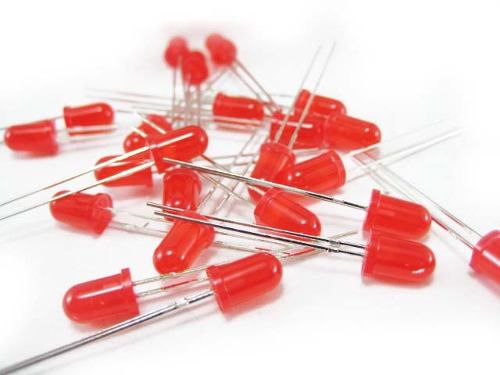

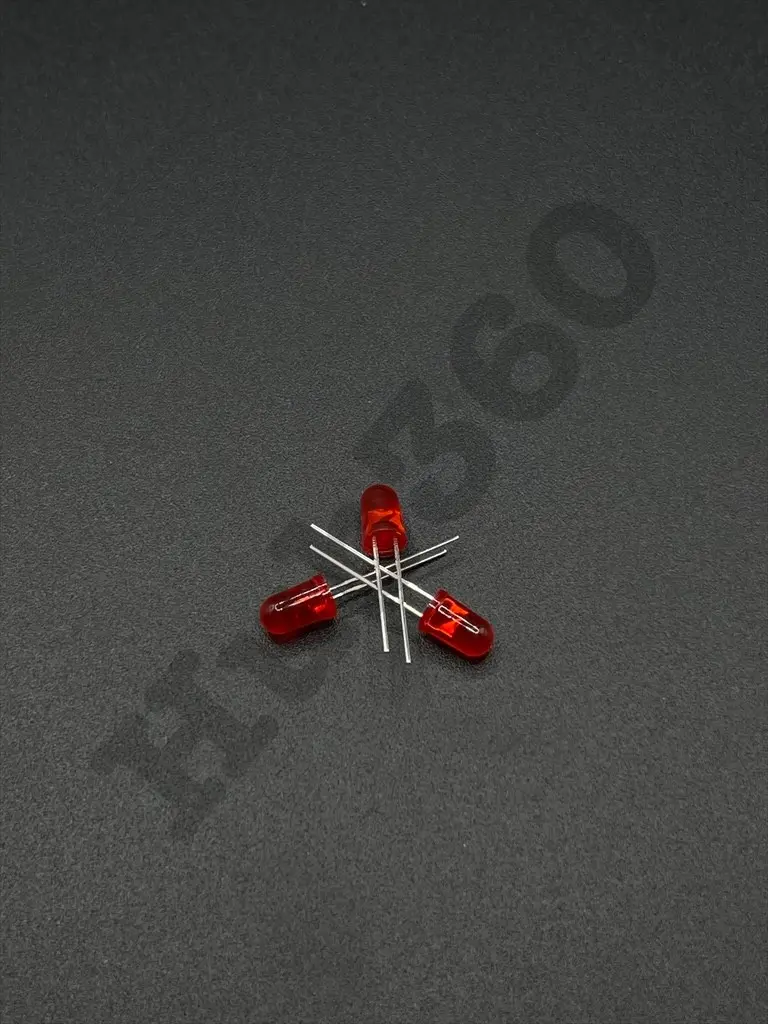

5mm red LED
The 5mm Red LED is a standard light-emitting diode designed for emitting bright red light. Its compact size makes it suitable for a wide range of applications, including indicator lights, display panels, and various electronic projects. The LED is known for its reliability, low power consumption, and high visibility.
Key Features:
- Bright red light emission
- Compact 5mm diameter
- Low power consumption
- Long operational life
- High reliability
- Simple to integrate into electronic circuits
- Forward Voltage: 1.8V to 2.2V DC
- Forward Current: 20mA (typical)
- Luminous Intensity: 5000 mcd (typical)
- Viewing Angle: 20° to 30°
- Wavelength: 620nm to 630nm (red)
- Power Dissipation: 75mW
- Dimensions: Diameter 5mm, Height 7mm (approximate)
- Mounting Type: Through-hole (leads)
- Indicator Lights: Used in various electronic devices to indicate power, status, or errors.
- Display Panels: Employed in digital displays and signage.
- DIY Projects: Commonly used in hobbyist projects for visual feedback.
- Toys: Integrated into toys for visual effects and lighting.
- Automotive Lighting: Used in vehicle lighting systems for decorative or signaling purposes.
