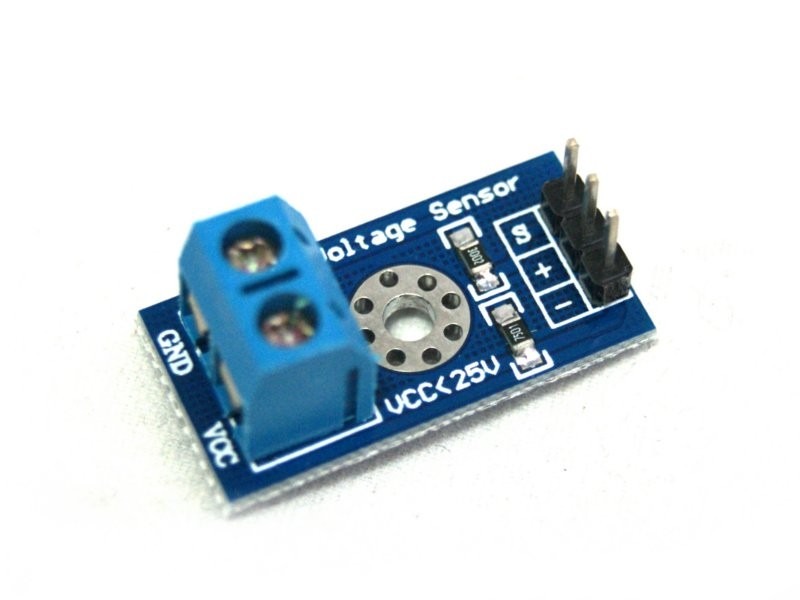

Voltage sensor
The Voltage Sensor is designed to measure the voltage of a circuit and provide a proportional output signal that can be read by microcontrollers, ADCs (Analog-to-Digital Converters), or other monitoring systems. This sensor is commonly used in battery monitoring, power management, and various electrical applications to ensure voltage levels remain within desired ranges.
Key Features:
- Wide input voltage range
- High accuracy and sensitivity
- Simple interfacing with microcontrollers
- Compact and robust design
- Low power consumption
- Provides analog output for easy integration
- Input Voltage Range: 0V to 25V DC
- Output Voltage: 0V to 5V DC (analog signal)
- Accuracy: ±1%
- Sensitivity: 0.2V output per 1V input
- Operating Voltage: 3.3V to 5V DC
- Power Consumption: <10mA
- Response Time: ≤ 100ms
- Dimensions: 25mm x 20mm x 12mm (approximate)
- Weight: 5g
- Mounting Type: PCB mount with through-hole pins
- Battery Monitoring: Used to measure and monitor battery voltage in portable devices.
- Power Management: Ensures voltage levels in power supply systems are within safe limits.
- Renewable Energy Systems: Monitors voltage in solar panels and wind turbines.
- Industrial Automation: Integrated into control systems to monitor and regulate voltage levels.
- DIY Projects: Suitable for hobby projects requiring voltage measurement and monitoring.
- IoT Devices: Used in IoT applications for remote voltage monitoring.
