ic socket wide body 24 pin

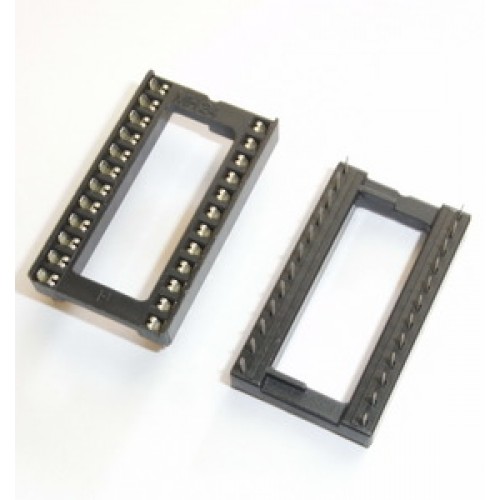

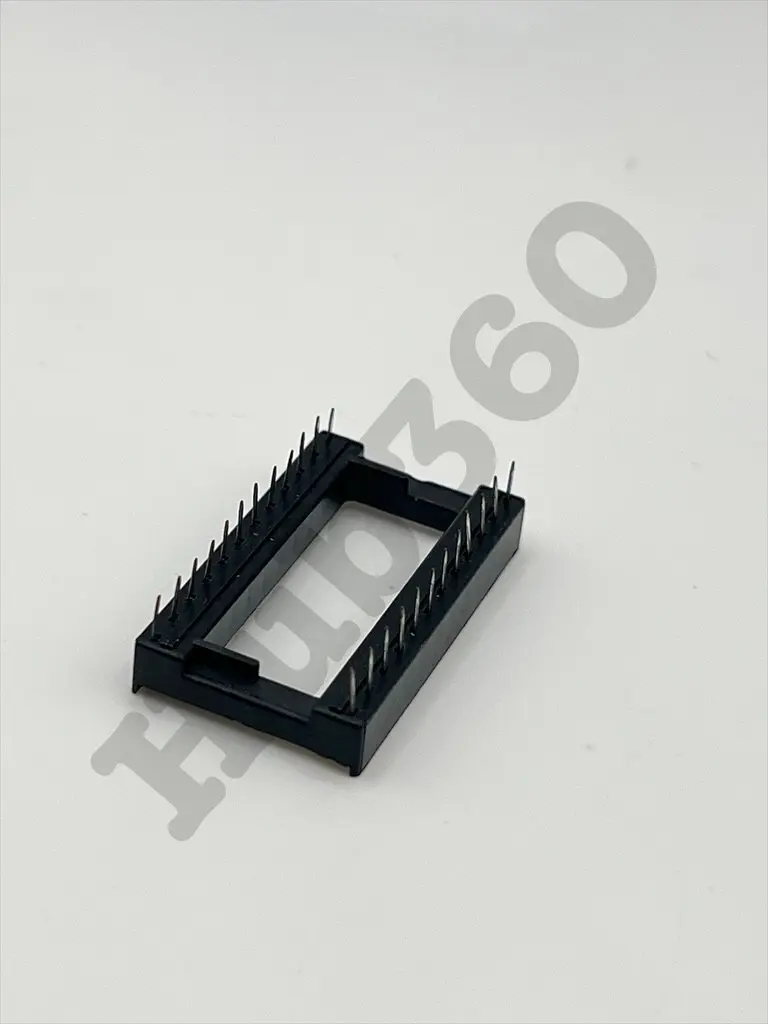

The IC Socket Wide Body 24 Pin is a high-quality socket designed to securely hold 24-pin integrated circuits (ICs) with a wide body configuration. It facilitates easy insertion and removal of ICs, making it an essential component for prototyping, testing, and repair of electronic circuits. The socket helps protect ICs from heat during soldering and ensures a reliable connection in the circuit.
Key Features:
- Type: 24-pin wide body IC socket
- High Quality: Made from durable materials to ensure a secure and stable connection
- Easy Installation: Allows easy insertion and removal of ICs
- Protective: Protects ICs from heat damage during soldering
- Standard Size: Fits standard 24-pin wide body ICs
- Number of Pins: 24
- Pin Pitch: 2.54mm (0.1 inch)
- Material: Thermoplastic with tin-plated contacts
- Contact Resistance: < 20 mΩ
- Operating Temperature: -40°C to +105°C
- Insertion Force: < 10 N
- Extraction Force: < 1 N
- Mounting Type: Through-hole
- Body Type: Wide body configuration
- Prototyping: Ideal for use in breadboards and development boards
- Testing: Facilitates easy testing of ICs without soldering
- Repair: Suitable for repairing electronic circuits with replaceable ICs
- General Purpose: Used in various electronic projects and applications
- Circuit Design: Integrate the 24-pin wide body IC socket into your circuit layout where a wide body 24-pin IC is required.
- Soldering: Solder the socket onto the PCB, ensuring all pins are securely connected.
- IC Insertion: Insert the IC into the socket, making sure all pins are aligned and properly seated.
- Testing and Maintenance: Easily remove and replace ICs as needed for testing and maintenance.
- Proper Alignment: Ensure correct alignment of IC pins with the socket to prevent damage.
- Soldering Temperature: Avoid excessive heat during soldering to protect the socket and PCB.
