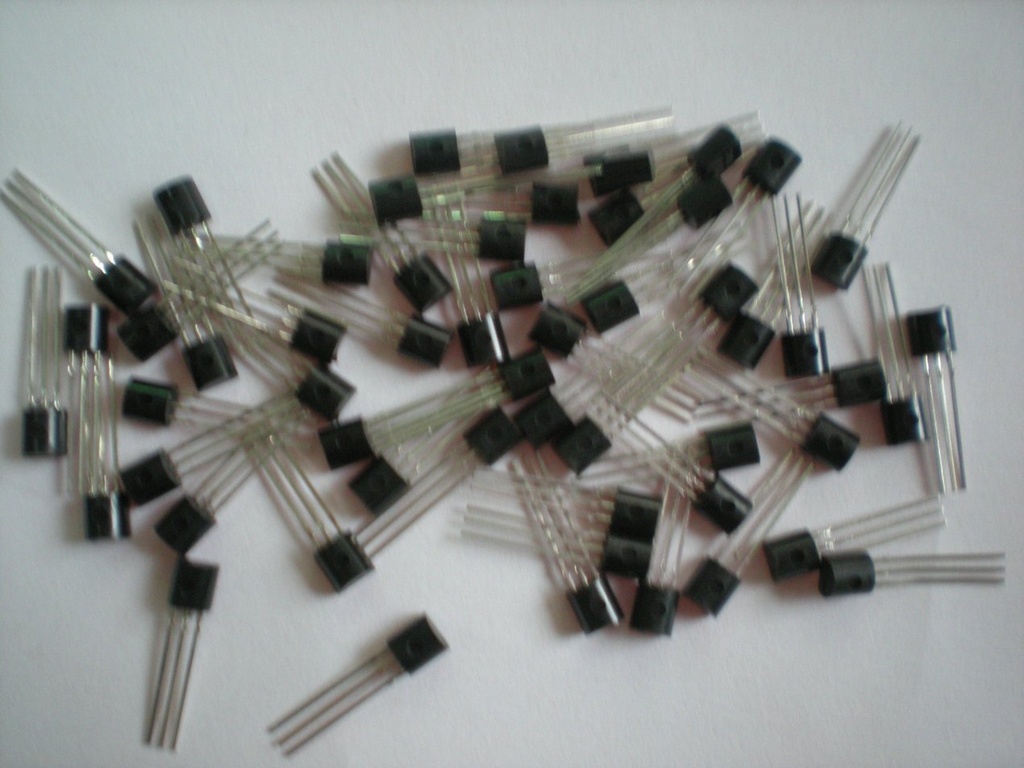

C1815 Transistor
The C1815 is an NPN bipolar junction transistor (BJT) commonly used for general-purpose switching and amplification applications. It is known for its reliability and performance in low-power electronic circuits. The transistor is suitable for use in various audio, signal, and switching circuits.
Key Features:
- Type: NPN Bipolar Junction Transistor (BJT)
- General Purpose: Suitable for low-power amplification and switching
- High Gain: Provides high current gain (hFE) for effective amplification
- Compact Package: Available in a TO-92 package for ease of integration
- Collector-Emitter Voltage (Vce): 50V
- Collector-Base Voltage (Vcb): 50V
- Emitter-Base Voltage (Veb): 5V
- Collector Current (Ic): 150mA
- Power Dissipation (Ptot): 400mW
- DC Current Gain (hFE): 70 to 700
- Transition Frequency (ft): 100MHz
- Package Type: TO-92
- Signal Amplification: Used in low-power amplification circuits
- Switching: Suitable for switching applications in various electronic circuits
- Audio Circuits: Effective in audio signal amplification and processing
- General Purpose: Versatile for use in a variety of general-purpose electronic projects
- Circuit Design: Integrate the C1815 transistor into your circuit design based on your application's requirements.
- Biasing: Ensure proper biasing of the transistor to achieve optimal performance in amplification or switching tasks.
- Connection: Connect the collector, base, and emitter terminals appropriately in the circuit.
- Testing: Verify the operation of the transistor in your circuit to ensure it functions correctly.
- Voltage and Current Ratings: Do not exceed the maximum voltage and current ratings to avoid damaging the transistor.
- Heat Management: Ensure proper heat dissipation to prevent overheating during operation.
- Static Electricity: Handle with care to prevent damage from electrostatic discharge (ESD).
