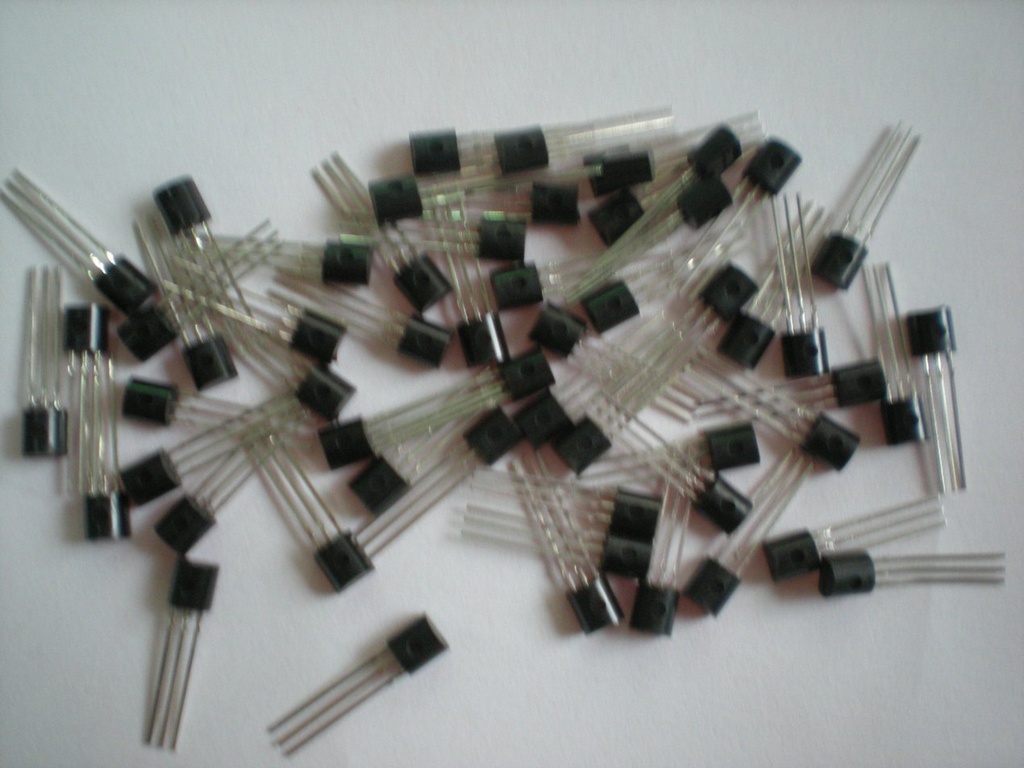

S9018 Transistor
The S9018 is a general-purpose NPN bipolar junction transistor (BJT) used for low-power amplification and switching applications. It features a high gain, low noise, and good frequency response, making it suitable for various electronic circuits, including signal amplification, switching, and low-level audio frequency applications.
Key Features:
- Type: NPN Bipolar Junction Transistor (BJT)
- High Gain: High current gain (hFE) for effective amplification
- Low Noise: Suitable for low noise applications
- Good Frequency Response: Effective in high-frequency applications
- Compact Package: Available in a TO-92 package for easy integration
- Collector-Emitter Voltage (Vce): 20V
- Collector-Base Voltage (Vcb): 25V
- Emitter-Base Voltage (Veb): 5V
- Collector Current (Ic): 50mA
- Power Dissipation (Ptot): 300mW
- DC Current Gain (hFE): 120 to 800
- Transition Frequency (ft): 600MHz
- Noise Figure: ≤ 10dB
- Package Type: TO-92
- Signal Amplification: Used in low-power amplification circuits
- Switching Applications: Suitable for low-power switching applications
- Audio Frequency Circuits: Ideal for low-level audio amplification
- RF Applications: Effective in radio frequency applications due to its high frequency response
- General Purpose: Commonly used in various general-purpose electronic circuits
- Circuit Design: Integrate the S9018 transistor into your circuit design based on the required application.
- Biasing: Properly bias the transistor for optimal performance in amplification or switching.
- Connection: Connect the collector, base, and emitter terminals appropriately in the circuit.
- Testing: Test the circuit to ensure the transistor is functioning as expected in the desired application.
- Voltage and Current Limits: Do not exceed the maximum voltage and current ratings to prevent damage.
- Heat Dissipation: Ensure adequate heat dissipation to avoid overheating, especially in high-frequency or high-current applications.
- Static Electricity: Handle with care to avoid damage from electrostatic discharge (ESD).
