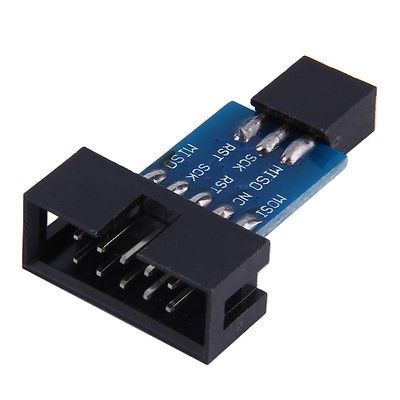

USBASP 10PIN to 6PIN adapter
The USBASP 10PIN to 6PIN Adapter is a convenient tool designed to convert the 10-pin ISP (In-System Programming) interface to the 6-pin interface commonly used in various AVR microcontroller programming setups. This adapter allows for seamless integration of the USBASP programmer with devices that require a 6-pin connection, simplifying the process of programming and debugging AVR microcontrollers.
Key Features:
- 10-Pin to 6-Pin Conversion: Converts the standard 10-pin ISP interface to a 6-pin interface
- Compact Design: Small and lightweight, easy to use and carry
- High Compatibility: Compatible with a wide range of AVR microcontrollers and USBASP programmers
- Durable Construction: Made with quality materials for reliable and long-lasting use
- Ease of Use: Simplifies the connection process for programming and debugging
- Connector Type: 10-pin IDC (In-circuit Debugging Connector) to 6-pin IDC
- Pin Configuration: Standard AVR ISP pinout
- Dimensions: Compact and easy to handle
- Material: Durable plastic and metal connectors
- Weight: Lightweight for portability
- AVR microcontroller programming
- In-system programming (ISP) for development and prototyping
- Debugging and firmware updates
- Compatible with USBASP programmers
- Connect the 10-pin side of the adapter to the USBASP programmer.
- Connect the 6-pin side of the adapter to the target AVR microcontroller or programming header.
- Ensure correct orientation and secure connections.
- Proceed with programming or debugging the AVR microcontroller using the USBASP programmer.
- Ensure correct orientation of the connectors to avoid damage.
- Verify the pinout compatibility with your target microcontroller before use.
- Handle with care to prevent damage to the pins and connectors.
