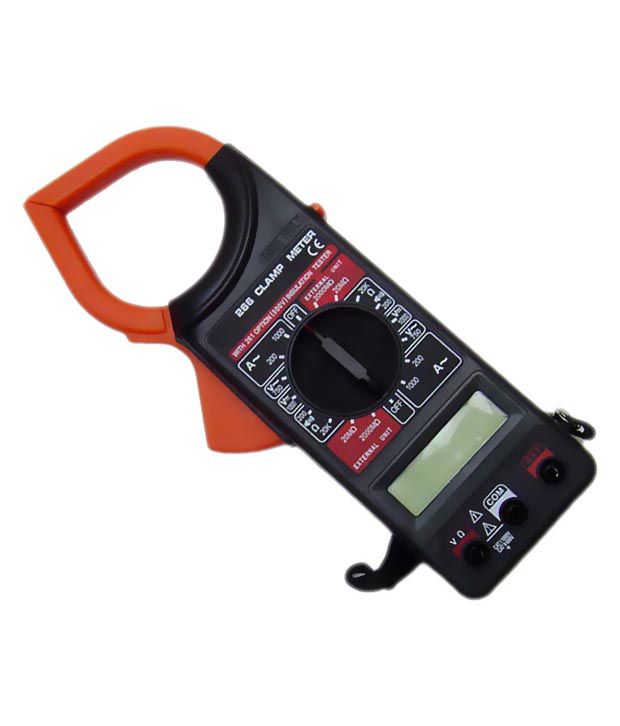

LCD Digital Clamp Multimeter-DT266

The LCD Digital Clamp Multimeter DT266 is a versatile and reliable measuring instrument designed for electricians, engineers, and hobbyists. This multimeter features a clamp design that allows for non-invasive current measurements, along with a range of other electrical testing capabilities. It is equipped with an easy-to-read LCD display and provides accurate measurements for voltage, current, resistance, and continuity, making it an essential tool for various electrical and electronic applications. Key Features:

• Clamp Design: Non-invasive current measurements up to 1000A AC
• LCD Display: Clear and easy-to-read display for precise readings
• Multifunction: Measures AC/DC voltage, AC current, resistance, and continuity
• Data Hold Function: Keeps the measured value on the display for easy reading
• Overload Protection: Protects the multimeter from damage due to excessive input
• Auto-Ranging: Automatically selects the appropriate measurement range
• Durable Build: Robust construction for long-term use in various environments

Technical Specifications:

• AC Current Range: 0-1000A
• AC Voltage Range: 0-750V
• DC Voltage Range: 0-1000V
• Resistance Range: 0-2000Ω
• Display: LCD with backlight
• Jaw Opening: Approximately 50mm
• Power Supply: 9V battery (included)
• Dimensions: 240mm x 80mm x 35mm
• Weight: Approximately 350g
• Operating Temperature: 0°C to +40°C

Applications:

• Electrical maintenance and troubleshooting
• Installation and testing of electrical systems
• Measuring current in wires without disconnecting circuits
• Testing voltage and continuity in various electronic devices
• Industrial and commercial electrical applications

Usage:

1. Select the desired measurement function (AC/DC voltage, AC current, resistance) using the rotary switch.
2. For current measurements, open the clamp and place it around the conductor without breaking the circuit.
3. Read the measured value on the LCD display.
4. Use the data hold function to keep the measurement on the display if needed.
5. Ensure proper range selection or use the auto-ranging feature for accurate measurements.

Caution:

• Do not exceed the maximum input limits to avoid damaging the multimeter.
• Ensure the multimeter is in good working condition before use.
• Follow all safety guidelines and precautions when working with electrical systems.
• Disconnect the test leads from the circuit when switching measurement functions.

Datasheet: For detailed technical specifications, refer to the LCD Digital Clamp Multimeter DT266 Datasheet.
