HC-SR505 PIR sensor
Description

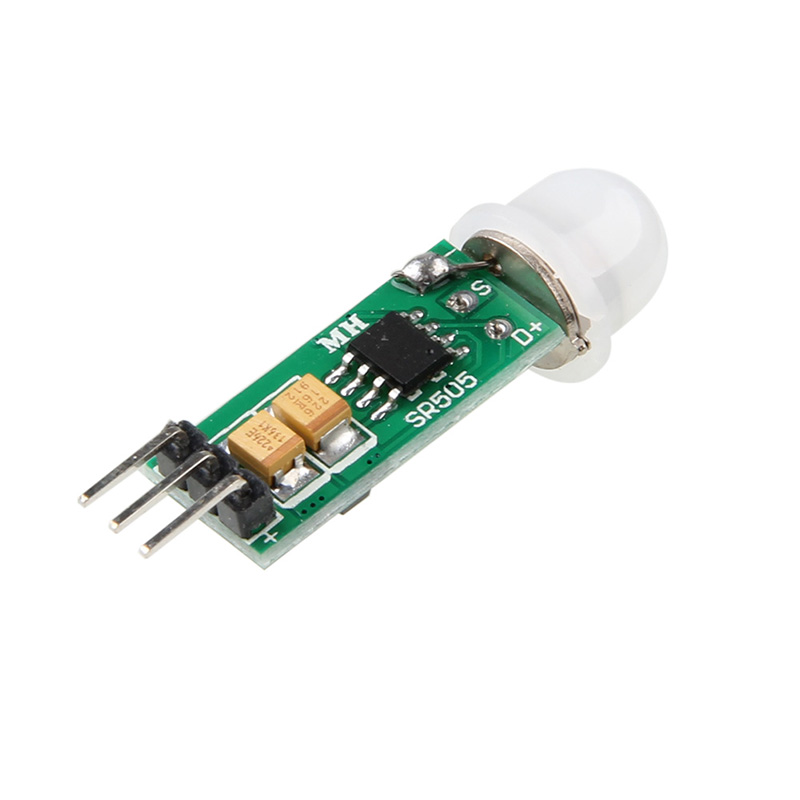

The HC-SR505 PIR Sensor is a compact, energy-efficient motion detector designed for precise detection of human presence and motion. It uses infrared technology and possesses automatic control, high sensitivity, high reliability and low power consumption. It triggers a digital output when it senses changes in infrared radiation. It’s 3 pin interface makes it easy to interface with any microcontroller and it’s perfect for motion-activated systems in smart electronics and embedded system projects.
Key Features
- Miniature Size
- Automatic Control
- Low Power Consumption: Ideal for battery-powered and perpetually on applications.
- Digital Output: Easy to interface with microcontrollers (HIGH on motion detection).
- Wide range of operating voltage
- Fixed Delay Time: Built-in timing circuit with ~8s delay after trigger.
- Repeatable Trigger
- Wide Detection Range: Up to 3 meters with a 100° field of view.
- Operating Voltage: 4.5V – 20V DC
- Quiescent Current: <60µA
- Detection Range: 3 meters
- Detection Angle: <100° cone angle
- Output Delay Time: The default 8 seconds+ -30% **
- Operating Temperature: -20°C to +80°C
- Dimensions: 23mm x 10mm
- Weight:5g
- Motion-activated lighting systems
- Smart home automation (e.g. lights, alarms)
- Industrial automation and control.
- Security and surveillance devices
- Occupancy monitoring
- Auto-sensing of electrical equipment.
- DIY electronics and IoT projects
