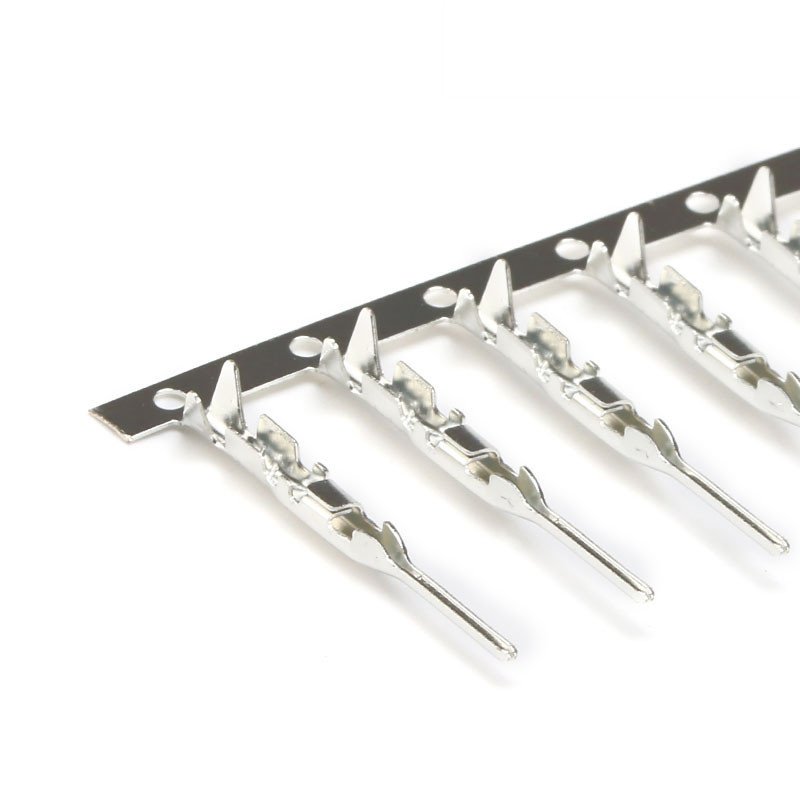

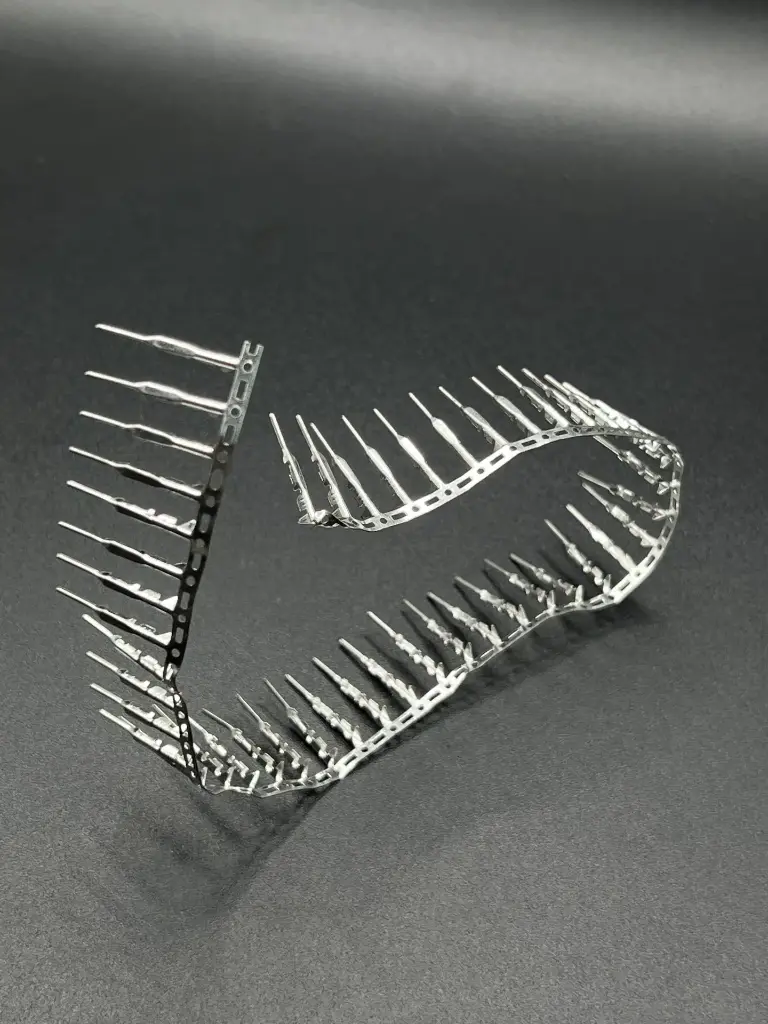

2.54mm male Dupont reed
The 2.54mm Male Dupont Reed is a standard breakaway pin header used for electrical connections in embedded systems, prototyping, and PCB development. With a 2.54mm (0.1 inch) pitch, it’s fully compatible with solderless breadboards, perf boards, and standard Dupont jumper wires.
Key Features
- Standard 2.54mm Pitch: Universal spacing for breadboards and PCBs
- Breakaway Design: Easily cut or snapped to required pin length
- Durable Build: Gold or tin-plated contacts ensure reliable conductivity and long-lasting connections.
- Solder-Friendly: Ideal for both through-hole and surface mount applications
- High Compatibility: Works with Arduino, Raspberry Pi, ESP modules, and more
- Pitch: 2.54mm
- Material: Copper alloy pins with tin or gold plating
- Row Type: Single row (optional double row available)
- Pin Count: Common lengths include 40-pin strips (can be cut as needed)
- Max Voltage: 250V
- Max Current: 1A
- Temperature Range: -25°C to +85°C
- Prototyping with breadboards and perfboards
- Custom header connections for Arduino, ESP32, STM32, etc.
- PCB manufacturing and design
- Jumper wire interfaces and sensor/module interconnects
- DIY electronics and repair.
