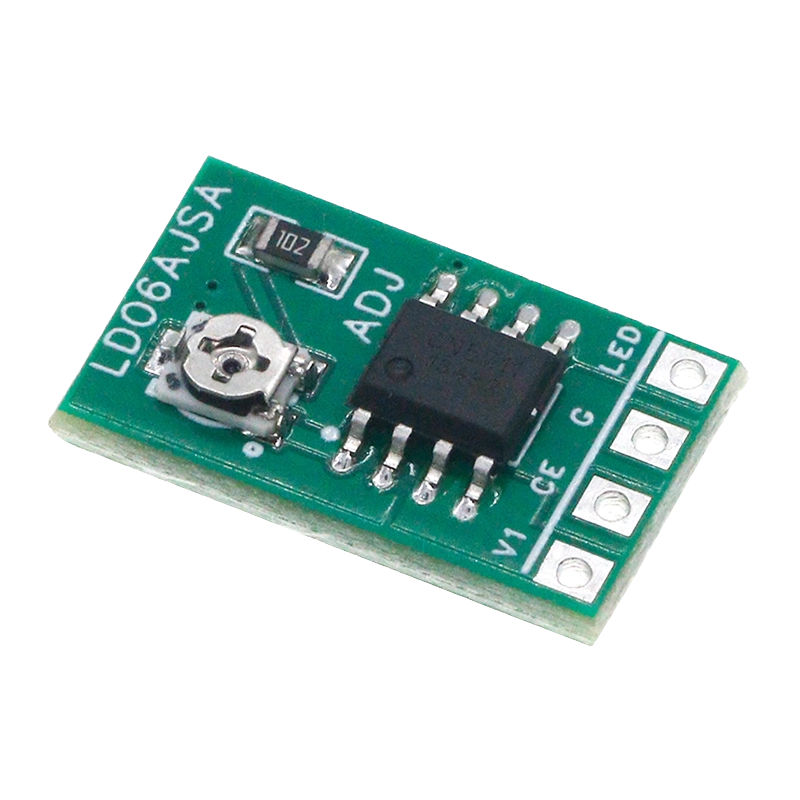

PWM control board

https://www.hub360.cc/web/image/product.template/16823/image_1920?unique=d4f4b80
(0 review)

₦ 900.00 900.0 NGN ₦ 900.00

₦ 900.00

Not Available For Sale

(₦ 0.00 / Units)

This combination does not exist.

Contact Us
This PWM control board features dual current regulation options, either via an onboard adjustable resistor or through PWM control, allowing flexible brightness control and integration into microcontroller-based systems. It operates within a DC input range of 2.8V to 6V, making it suitable for use with 3V, 3.3V, 3.7V, 5V, and 6V power sources. Features and Specifications
  • Working Voltage:DC 2.8–6V (Suitable for 3V, 3.3V, 3.7V, 5V, and 6V LED drivers)
  • Output Current:30–1500 mA
  • Maximum Output Power:9W
  • LED Driving Capability:Can drive 1–16 LEDs rated for 3–6V (maximum current must not exceed 1.5A)
  • Current Regulation Methods:
    • Via adjustable resistance (TZT)
    • Using PWM control
  • Features:
    • Chip temperature control
    • Overcurrent protection for LEDs
  • Dimensions: 10.20mm * 18.00mm
Applications
  • Embedded Electronics Projects: Used in Arduino or ESP32/ESP8266-based systems for LED control with adjustable brightness via PWM.
  • Built-in temperature and overcurrent protection makes it suitable for projects requiring safety and longevity under variable thermal conditions.
