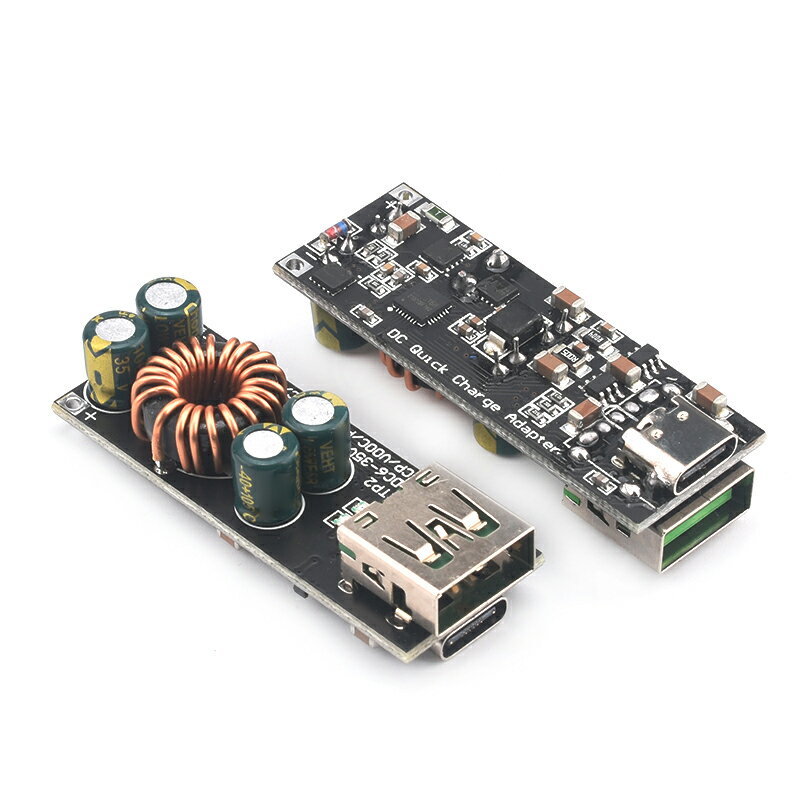

mobile Phone Fast charging module
This mobile Phone Fast charging module is designed to deliver fast charging via USB-C (PD 3.0, PPS) and USB-A (QC4+/QC3.0) ports. Powered by the SW3516 IC, it automatically adjusts the output voltage from 3V to 20V, supporting up to 60W of power.
Features:
- Supports all major fast charge protocols:
- USB PD 3.0 (including PPS)
- QC4+ / QC4.0 / QC3.0 / QC2.0
- Dual output options: USB Type-Cand USB Type-A
- Compact and lightweight, ideal for DIY applications
- Compatible with 12V power adapters, batteries, solar panels, and DC generators
- Automatically negotiates correct fast charge protocol based on the connected device
Specifications:
- Input Voltage:6V – 35V DC
- Output Voltage:3V – 20V DC (automatically adjusts according to the fast charge protocol)
- Output Ports:USB-C and USB-A
- Maximum Output Power:60W
- IC Chip:SW3516
- LED Indicators:
- Blue LED: Power indicator
- Red LED: Fast charge indicator
- Input Requirement:Input voltage must be at least 1V higher than the output voltage
- Size:50 × 17 × 12 mm
- Ideal for DIY applications,
- Perfect for outdoor use, car charging, emergency backup, and general-purpose power delivery
- Excellent for daily fast charging and portable power solutions
