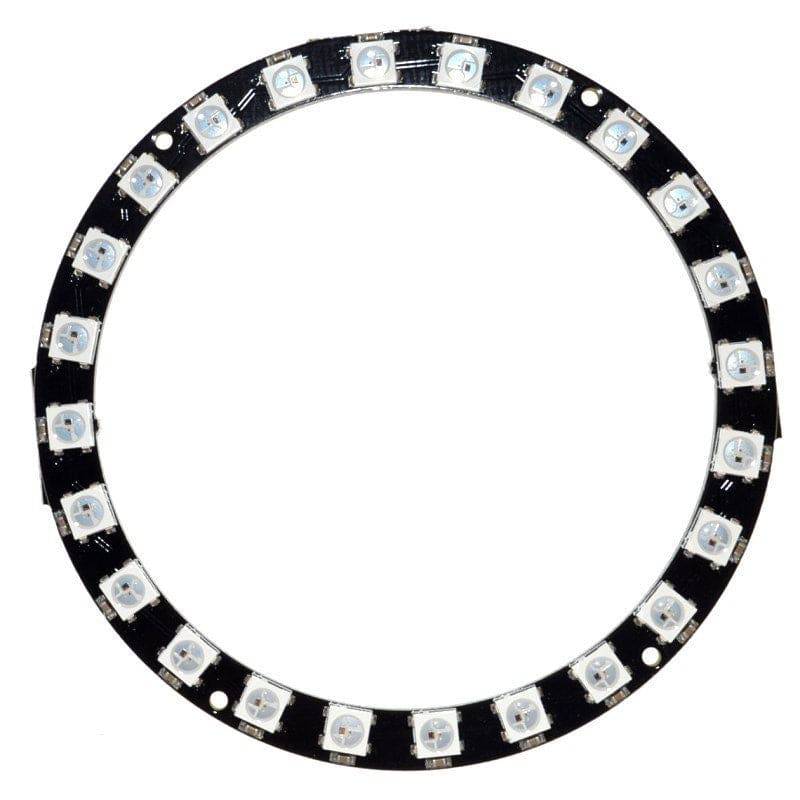

WS2812 5050 24 bit round RGB LED Magic color module
A 24-bit circular WS2812 LED module is ideal for mid-range LED ring projects. It provides precise, colourful lighting in a modular, expandable format.
Key Features:
- 24 RGB LEDs, individually addressable
- Seamless chaining with other modules
- Smooth animations and gradients
- Compact design for circular patterns
- Operates on a single data line
- When the refresh rate is 30 frames / second, the number of cascades is not less than 1024 points
- Built-in full-colour driving chip.
- Supports 256 brightness levels per colour
- LED Count: 24
- Operating Voltage: 5V DC
- LED Type: WS2812 5050
- Input Voltage: 4-7V DCA
- Communication: One-wire serial (WS2812 protocol)
- Scanning frequency: >400Hz/s
- Data transfer rated: 800Kbps
- Outer Diameter: Approx. 50mm**
- Inner Diameter: Approx. 35mm**
- Diameter: ~66mm
- Signal: Single-wire digital input/output
- DIY smart mirrors
- LED clocks or visual feedback rings
- Custom RGB display and signage
- Wearable tech
- Decorative lighting and ambience effects
