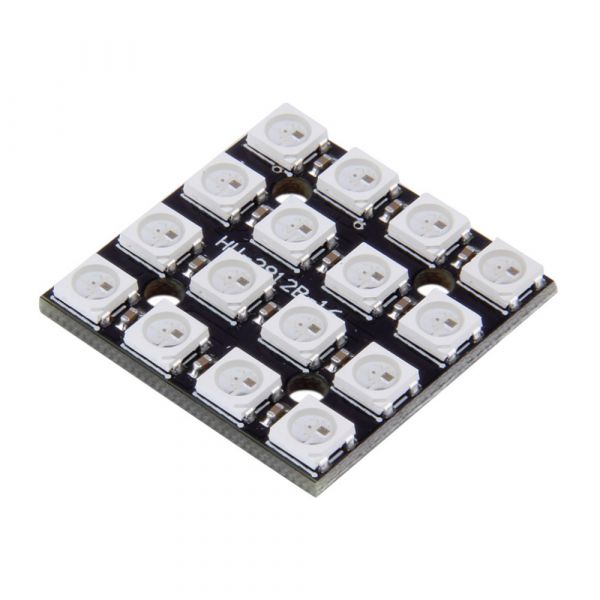

WS2812 5050 16 bit Square RGB LED Magic color module
This 4×4 square matrix of WS2812 RGB LEDs provides full control over individual pixels, enables dynamic patterns, text, and animations.
Key Features:
- 16 addressable RGB LEDs in a 4×4 grid
- Easy chaining for matrix expansion
- Plug-and-play with microcontrollers
- Operates on a single data line
- Built-in full-colour driving chip
- LED Count: 16
- Operating Voltage: 5V DC
- Input Voltage: 4-7V DC
- Communication: One-wire serial (WS2812 protocol)
- Scanning frequency: >400Hz/s
- Data transfer rated: 800Kbps
- Layout: 4x4 square grid
- Dimensions: ~40mm × 40mm
- Scrolling text
- Mini displays
- Creative wearables
- Decorative lighting and ambience effects
- Custom RGB display and signage
