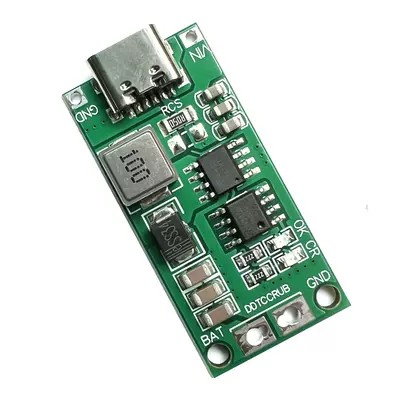

3S 4A Lipo charger with protection board
The 3S charger module delivers 4A fast charging with complete safety protection for 3 cell LiPo battery packs. Uses a USB Type-C input and enables convenient charging from a computer or power adapter using a compatible cable.
Key Features:
- High current capability
- Comprehensive protection circuits
- 4A fast charging
- Reliable integrated Battery management system
- Compact design:Space-saving design fits well in a wide range of projects and setups.
- LED Status Lights: Display the current charging state in real time.
- Boost Conversion: Effectively raises lower input voltages to 8.4V, ideal for charging 2S battery packs.
- Cells:3S
- Input voltage:DC 3-6V (recommended DC 3.7V 5V)
- Charging voltage:depends on the version (8.4V/ 12.6V /16.8V version)
- Input Current:4A
- Charging Current:48A
- Switching Frequency:Reaches up to 1MHz
- Operating Temperature Range:-40°C to +85°C
- Charging Mode:Constant Current / Constant Voltage (CC/CV)
- LED Indicators: CR; Indicates charging is active, OK: Signals full charge or constant voltage stage
- Protection Features:Overvoltage, Undervoltage, Short-circuit, Over-charge, Over-discharge and Temperature protection.
- Dimensions: 39mm x 18mm x 6.3mm
- Weight: 5 grams
- Battery-powered tools
- RC aircraft and robotics
- Backup battery systems
- MP3 and MP4 players
- Gaming consoles
- Audio equipment
