DC-DC Boost module 250w
This high-performance DC-DC boost converter can step up voltages with up to 250W output for power-hungry projects. It offers great power management, chip design, high reliability, small inrush current, small size and an efficiency of up to 96% with a maximum power of 250W. The aluminium plate design is easy to install, and the back of the plate can be directly affixed to metal shell to dissipate heat thus reducing equipment space. Enhanced cooling (e.g fan) is recommended when operated if the ambient temperature is too high.
Key Features:
- High output power up to 250W
- Wide input/output voltage range
- Overcurrent protection
- Adjustable output voltage
- Input Voltage:5V – 48V DC
- Output Voltage:10–50V DC
- Max Power:250W
- Output current:10A (MAX) (heat dissipation is necessary for currents above 6A)
- Input current: 10A (MAX) (if it exceeds 8A enhance heat dissipation)
- Operating frequency:150KHz
- Conversion Efficiency:Up to 96%
- Operating Temperature:-40°C to +85°C (enhance heat dissipation if ambient Temp. is too high)
- Over-current protection:yes (Output voltage is automatically reduced if input current exceeds 13A +/-10%) (includes short circuit protection)
- Input Reverse polarity protection:Yes (Maximum reverse current less than 5A)
- Potentiometer:CC is constant current regulation; CV is constant voltage regulation.

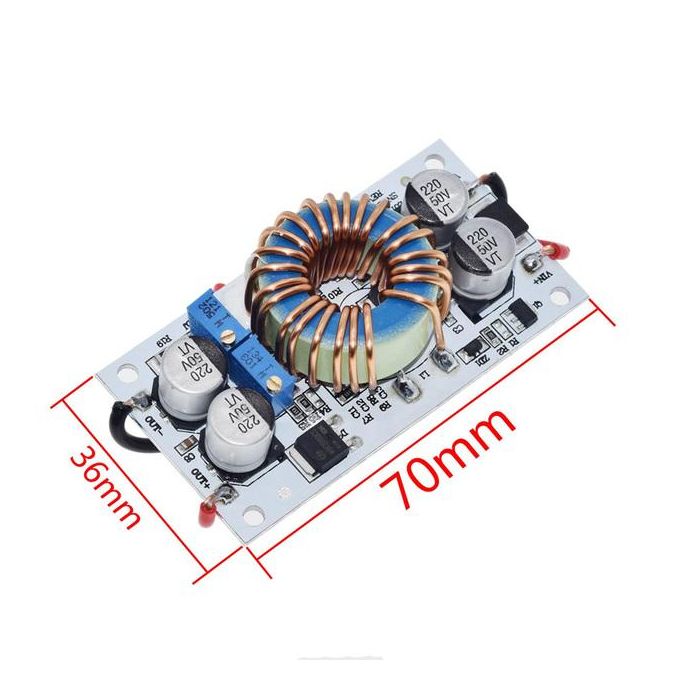

- Dimensions:70mm x 36mm
- Weight:50g
- Motor drives
- High-power LED lighting
- Portable power stations
- Battery charging
- Solar panel voltage regulation
- Power laptops, PDA or various digital products from a vehicle's 12V system
