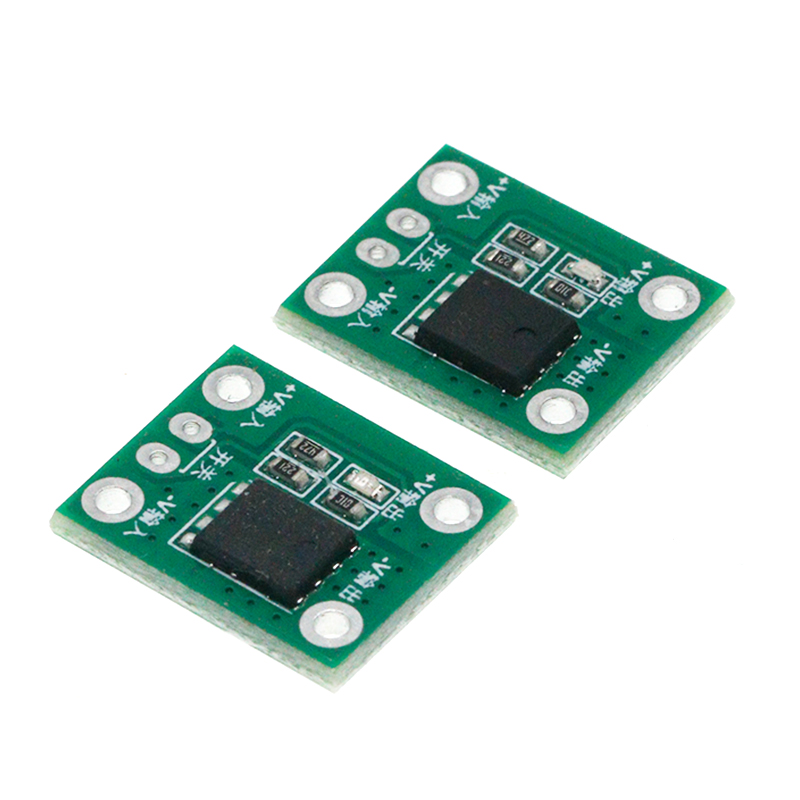

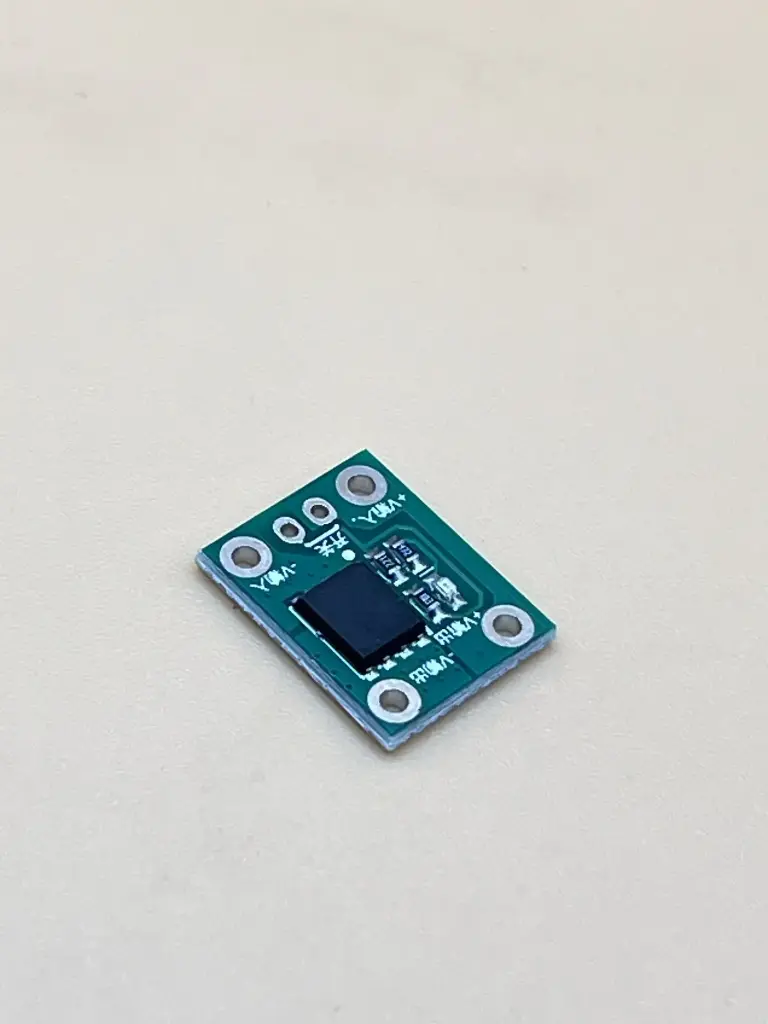

20A High Power Mosfet Switch

The 20A High Power MOSFET Switch Module is designed for efficient and reliable control of high-current DC loads. With a wide voltage range from 5V to 26V and a robust current capacity of up to 20A, this module is perfect for applications that demand powerful and stable switching solutions.

Its compact footprint and through-hole mounting make it easy to integrate into custom PCBs or DIY projects, while its low on-resistance ensures minimal power loss and heat buildup. This module is widely used in motor control, LED lighting, battery protection, and automated power switching systems.

Key Features

• High current handling up to 20A

• Wide input voltage: 5V to 26V

• Fast switching response and low heat generation

• Compact design: only 16mm x 13mm

• Supports high-frequency PWM for motor and LED control

• Durable and efficient under harsh conditions

• Ideal for DC load control and automation

Specifications

• Current Rating: 20A (standard)

• Operating Voltage: 5V – 26V DC

• Module Dimensions: 16mm x 13mm

• Mounting Type: Through-hole

• Operating Temperature: -40°C to +85°C

• Control Interface: PWM or direct logic signal

Applications

• DC Motor control (robotics, fans, pumps)

• High-power LED dimming

• Lithium battery pack switching

• DIY electronic power switching

• Power control in automation systems

• Smart home devices and remote relays
