Description

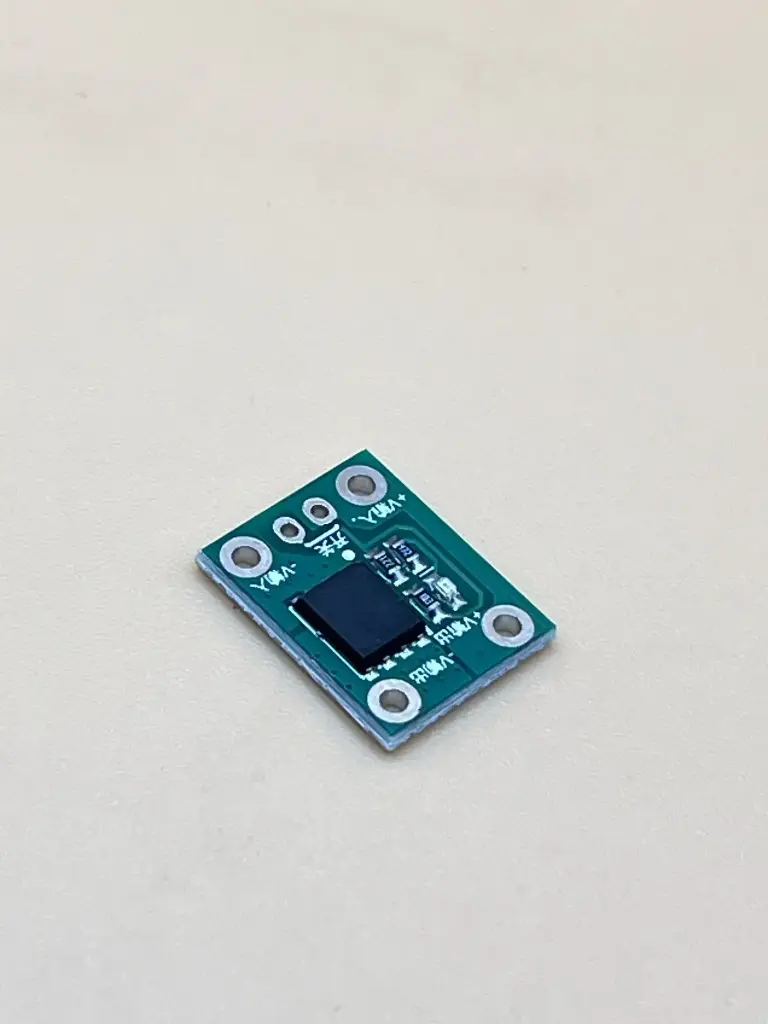

The 20A High Power MOSFET Switch Module is designed for efficient and reliable control of high-current DC loads. With a wide voltage range from 5V to 26V and a robust current capacity of up to 20A, this module is perfect for applications that demand powerful and stable switching solutions.
Its compact footprint and through-hole mounting make it easy to integrate into custom PCBs or DIY projects, while its low on-resistance ensures minimal power loss and heat buildup. This module is widely used in motor control, LED lighting, battery protection, and automated power switching systems.
Key Features
- High Current Handling: Supports up to 20A DC load
- Wide Input Voltage: Operates from 5V to 26V DC
- Fast Switching: Low on-resistance ensures minimal heat and high efficiency
- Compact Design: Only 16mm × 13mm, easy to integrate
- PWM Support: Compatible with high-frequency PWM for motor and LED control
- Durable: Efficient under harsh electrical and environmental conditions
- Versatile: Suitable for various DC load control and automation projects
Specifications
- Current Rating: 20A (standard)
- Operating Voltage: 5V – 26V DC
- Module Dimensions: 16mm × 13mm
- Mounting Type: Through-hole
- Operating Temperature: -40°C to +85°C
- Control Interface: PWM or direct logic signal
Applications
- DC Motor control (robotics, fans, pumps)
- High-power LED dimming
- Lithium battery pack switching
- DIY electronic power switching
- Power control in automation systems
- Smart home devices and remote relays
