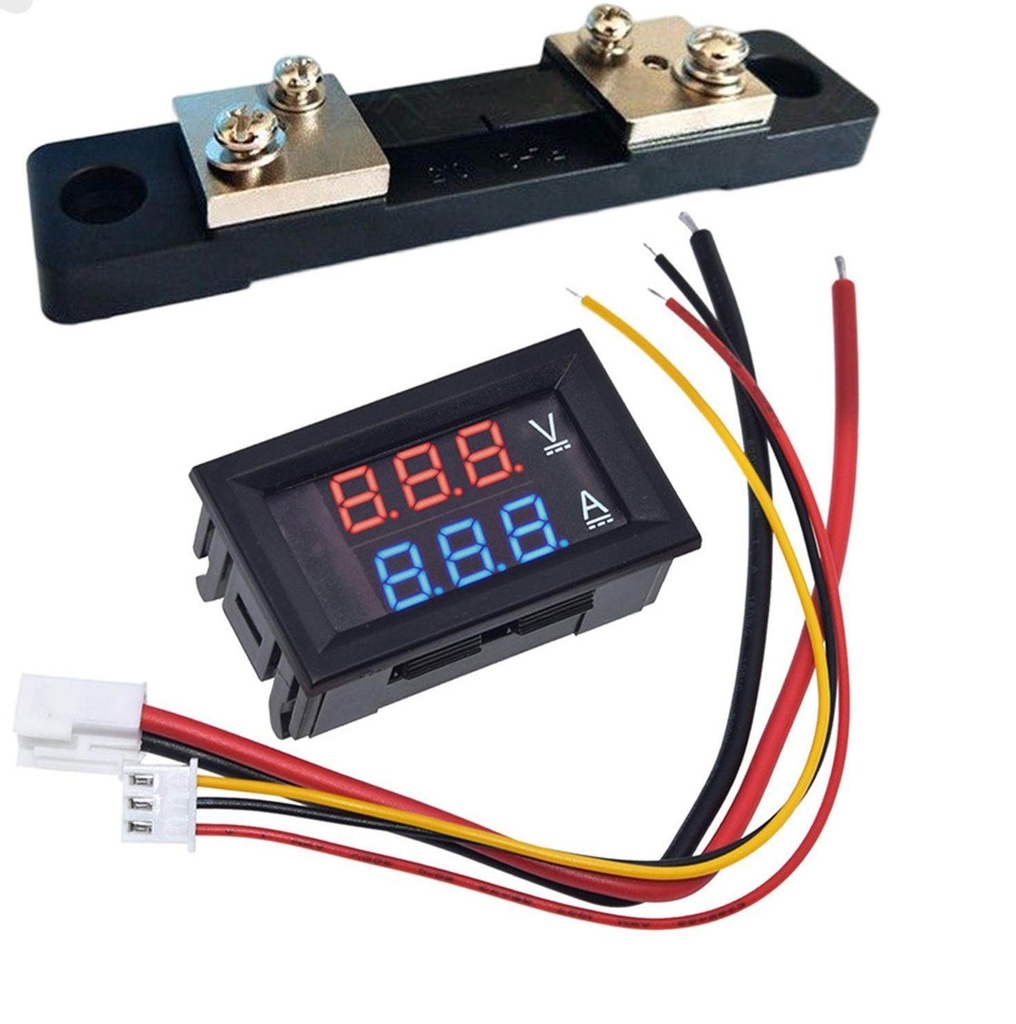

50A Current and Voltage meter with 50A shunt

he Digital 50A Current and Voltage Meter with Shunt is a compact and powerful tool for real-time monitoring of voltage and current in DC circuits. Featuring a dual-color LED display (red for voltage, blue for current), this meter clearly displays both values simultaneously, improving readability and efficiency.

The included 50A external shunt allows the meter to handle high current loads accurately, while the wide voltage range (0–100V) and operating voltage (4–30V) make it ideal for a variety of low to medium voltage applications like solar systems, DIY power packs, and battery monitoring.

⚠️ Note: Not suitable for current measurements below 1A due to large error margins at low current.

Key Features:

• Dual LED Display – Simultaneously shows voltage (red) and current (blue)

• Supports up to 50A with included external shunt

• Wide measurement range: 0–100V (voltage), 1–50A (current)

• Compact size – Fits easily in embedded panels and DIY projects

• CE Certified for quality and safety

• Battery-powered operation with low power draw

Technical Specifications:

• Voltage Measurement Range: 0 – 100V DC

• Current Measurement Range: 1 – 50A DC

• Operating Voltage: 4 – 30V DC

• Display Type: 0.28" Dual LED (Red for Voltage, Blue for Current)

• Included Component: 50A External Shunt

• Weight: 90g

• Product Dimensions: 10 x 10 x 10 cm

• Color: Red & Blue LED Display

Applications:

• DIY battery charging and management systems

• Solar energy monitoring

• DC power supply testing

• Robotics and Arduino-based electronics projects

• Automotive power systems and hobbyist electronics
