Description

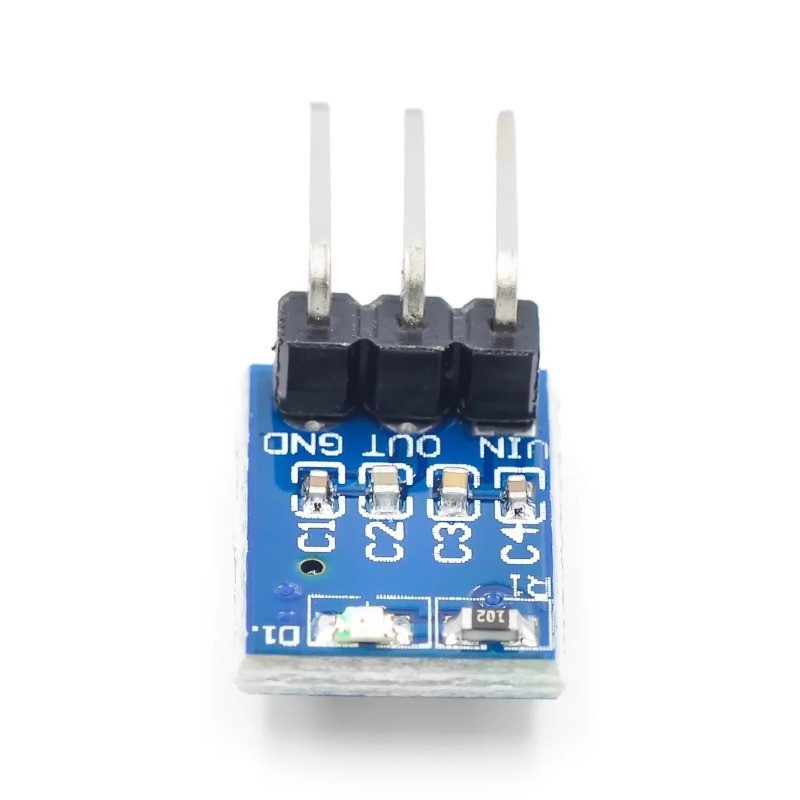

The AMS1117-5V Power Module is a low-dropout linear voltage regulator breakout board designed to provide a stable 5V DC output from an input voltage of 6.5V to 15V. It uses the reliable AMS1117-5.0 LDO regulator, capable of supplying up to 800mA of current. Perfect for powering 5V logic circuits, sensors, and microcontrollers like Arduino or ESP32.
Key Features
- Compact & Breadboard-Friendly: Easy to integrate into prototype circuits.
- Stable 5V Output: Provides clean, regulated power for 5V devices.
- Low Dropout Design: Efficiently regulates voltage with minimal loss.
- Simple 3-Pin Interface: IN–GND–OUT configuration for quick setup.
- Built-in Power LED: Red indicator shows active power status.
Specification
- Input Voltage: 6.5V – 15V DC
- Output Voltage: 5.0V ±1%
- Maximum Output Current: 800mA
- Regulator Chip: AMS1117-5.0
- LED Indicator: Red (Power ON)
- Pins: 3 (IN, GND, OUT)
- Module Dimensions: 13mm × 9mm × 7mm
- Weight: 14g
- Shipment Dimensions: 2cm × 2cm × 2cm
- Shipment Weight: 18g
Application
- Power supply for 5V microcontrollers (e.g., Arduino, ESP8266, STM32)
- DIY electronics and small embedded systems
- Breadboard prototyping and circuit development
- Sensor modules and logic-level devices requiring stable 5V power
