Description

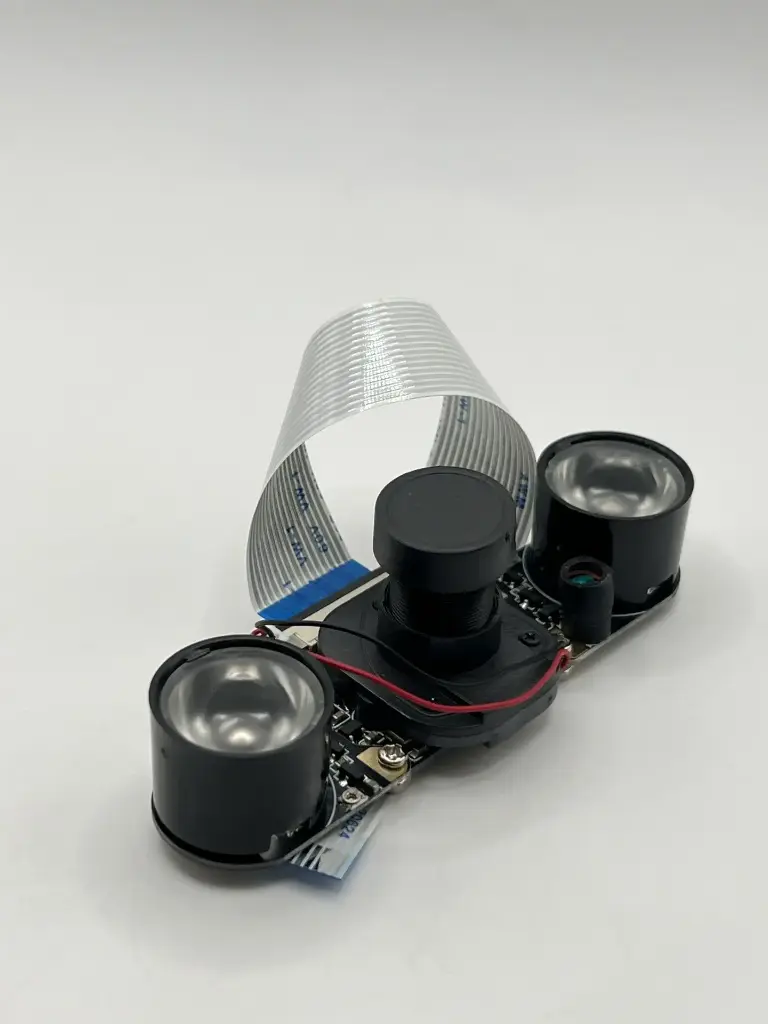

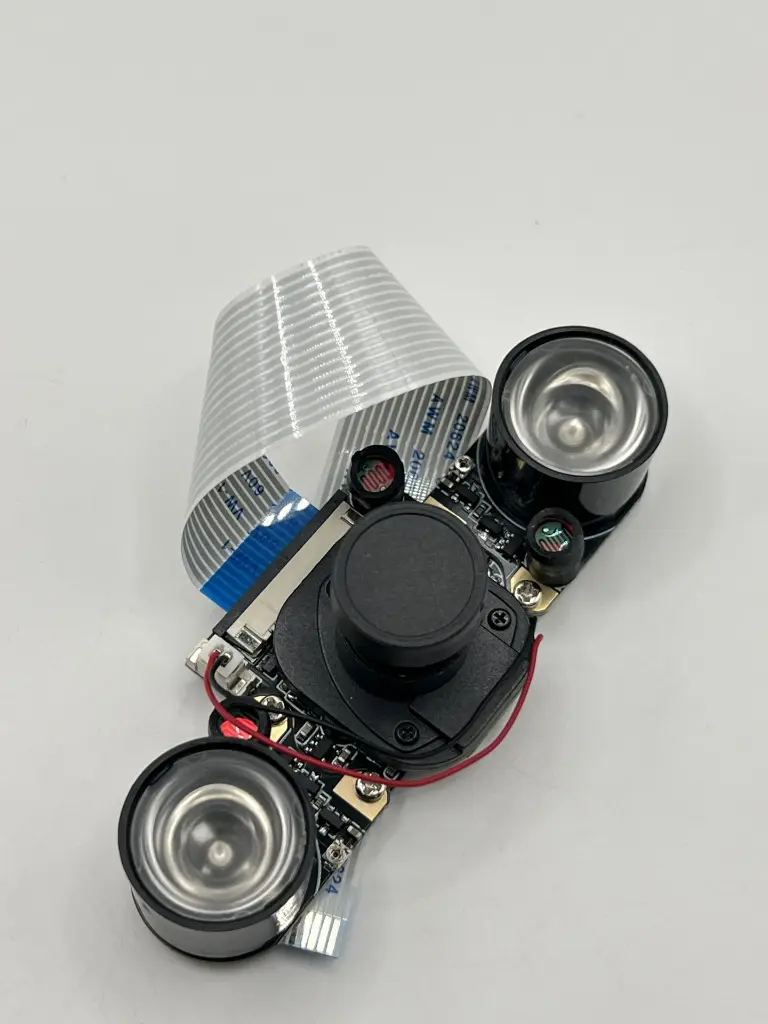

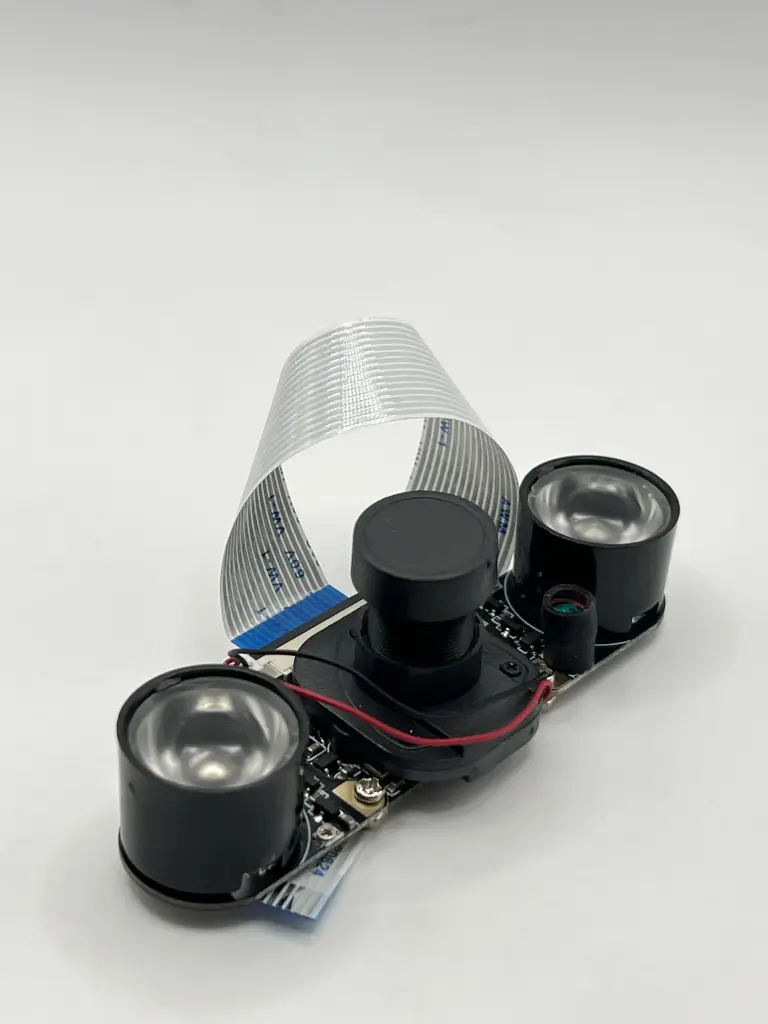

The OV5647 5MP Night Vision Fisheye Camera is a specialized camera module for Raspberry Pi, featuring the OV5647 image sensor and high-power infrared LEDs for low-light and nighttime imaging. It includes an onboard photoresistor and adjustable threshold control, enabling automatic activation of the IR LEDs based on ambient light levels. With its wide-angle fisheye lens, this camera is suitable for surveillance, robotics vision, and embedded projects requiring visibility in darkness.
Key Features
- 5 megapixel OV5647 image sensor delivers high-resolution imaging
- Equipped with two 3W high-power 850nm infrared (IR) LEDs for night vision capability
- Onboard photoresistor detects ambient light levels automatically
- Adjustable potentiometer sets the IR LED activation threshold based on surrounding brightness
- Provides 3.3V power output for external components such as additional LEDs or sensors
- Supports infrared and fill-flash LED connectivity for enhanced lighting control
Specification
- Sensor: OV5647, 5 megapixel
- CCD size: 1/4 inch
- Aperture (F): 2.0 (typical for this lens type; please verify with your module)
- Focal length: Adjustable
- Field of view: 160° diagonal, 120° horizontal
- Best resolution: 1080p
- IR LED wavelength: 850nm (typical)
- IR LED power: 2 × 3W
- Automatic IR activation: Via photoresistor with adjustable threshold
- Interface: CSI (Camera Serial Interface) for Raspberry Pi
Applications
- Night vision surveillance and security cameras
- Robotics and autonomous vehicle vision systems
- Raspberry Pi and other embedded system camera projects
- Low-light wildlife monitoring
- Indoor and outdoor smart security setups
