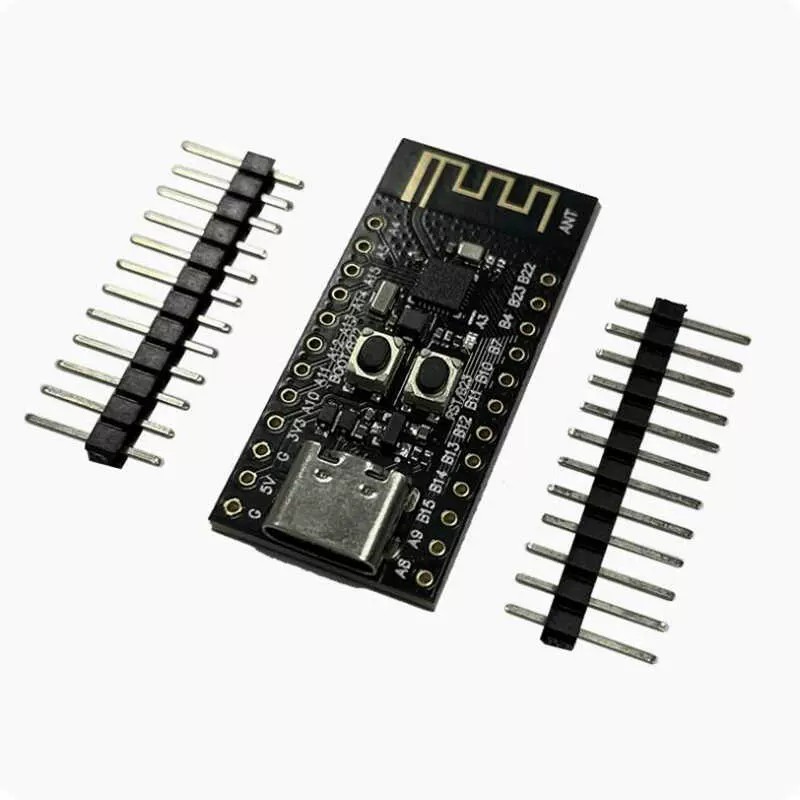

CH582 Bluetooth development board 5.3

https://www.hub360.cc/web/image/product.template/16978/image_1920?unique=d4f4b80
(0 review)

₦ 8,600.00 8600.0 NGN ₦ 8,600.00

₦ 8,600.00

Not Available For Sale

(₦ 0.00 / Units)

This combination does not exist.

Contact Us
The CH582 Bluetooth 5.3 Development Board is a compact, energy-efficient development platform tailored for embedded system prototyping and IoT device creation. With support for Bluetooth 5.3 Low Energy, USB interfacing, and low-power operation, it’s ideal for educational use and rapid product iteration involving ARM and RISC-V architectures.

Features

  • Bluetooth 5.3 Low Energy (LE) support

  • Compact form factor with dual 12-pin I/O headers

  • Onboard 3.3V LDO regulator with power protection

  • USB connectivity with reverse current and surge protection

  • Dual crystal system for accurate timing (HSE + LSE)

  • Reset and Boot control buttons

  • Ideal for low-power applications and educational use.

Specifications

  • Clock System:

    • 32 MHz high-speed passive crystal (HSE)

    • 32.768 kHz low-speed passive crystal (LSE)

  • Power Supply:

    • Input Voltage: 3.3V to 5.5V

    • Onboard 3.3V LDO (100 mA max output)

    • USB power protected by diode and TVS for surge and reverse current

  • Interfaces:

    • Two 12-pin headers (2.54 mm pitch) for GPIO and peripheral expansion

  • Control Buttons:

    • Reset Button (connected to B23)

    • Boot Button (connected to B22)

  • Wireless Communication:

    • Bluetooth 5.3 Low Energy (LE)

Applications

  • Embedded system prototyping

  • IoT device development

  • Bluetooth-based automation and sensing

  • Low-power data logging

  • Educational projects in microcontroller and SoC design
