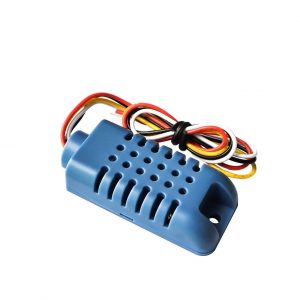

AM1001 Resistive Humidity Module
The AM1001 (AMT1001) is a cost-effective, analog-output humidity and temperature sensor module designed for long-term stability and ease of use. It features built-in temperature compensation and linear analog voltage output, making it suitable for applications where low power, reliability, and affordability are essential.
Key Features:
- Dual Sensing: Measures both temperature and relative humidity
- Analog Voltage Output: Simple interface with microcontroller ADCs
- Built-in Temperature Compensation: Improves long-term accuracy
- Low Power Consumption: Ideal for continuous monitoring
- Fully Calibrated: No external calibration required
- Compact and Interchangeable: Easy to integrate and replace
- Long-Distance Signal Transmission: Stable over extended wiring
- Model: AM1001 / AMT1001
- Sensor Type: Resistive humidity + thermistor-based temperature
- Output Type: Analog voltage
- Supply Voltage: 5V DC ± 5%
- Current Consumption: 2 mA (max 5 mA)
- Temperature Range (Operation): 0°C to +60°C
- Temperature Range (Storage): 0°C to +60°C
- Humidity Measuring Range: 20% to 95% RH (non-condensing)
- Storage Humidity Range: Up to 95% RH (non-condensing)
- Humidity Accuracy: ±5% RH at 25°C
- Output Voltage (Typical): Analog voltage proportional to RH
- Temperature Compensation: Internal, factory-calibrated
- Response Time: <5 seconds (humidity), <10 seconds (temperature)
- Dimensions: Varies by module casing
- HVAC and air conditioning systems
- Humidifiers and dehumidifiers
- Weather and environmental monitoring
- Agricultural humidity control systems
- Industrial process regulation
- Consumer appliances and smart home devices
- Scientific measuring instruments
