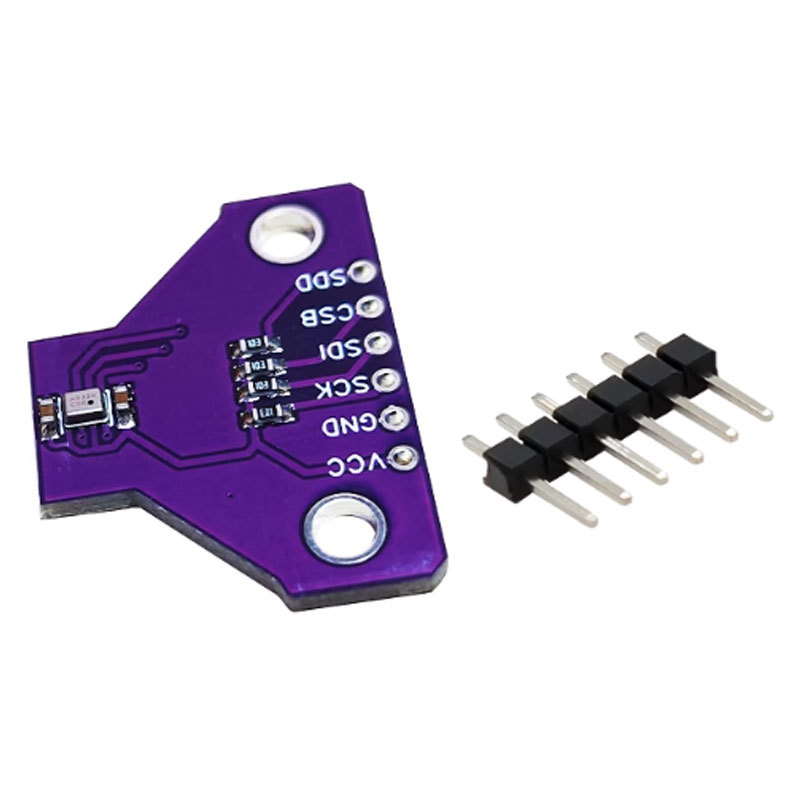

SPL06-001 Atmospheric Pressure module
The SPL06-001 is a high-precision, ultra-compact digital barometric pressure and temperature sensor. Designed for accurate pressure and altitude measurements, it supports both I²C and SPI communication and is ideal for compact embedded systems, weather monitoring, and altitude tracking applications.
Key Features:
- High Accuracy: Pressure resolution down to ±1 Pa
- Dual Sensor Output: Measures both pressure and temperature
- Multi-Interface: Supports I²C and SPI for flexible integration
- Ultra Compact: Fits into space-constrained projects
- Low Power Operation: Ideal for battery-powered systems
- Fast Response Time: Real-time environmental tracking
- Calibrated Output: Factory-calibrated for precise measurements
- Model: SPL06-001
- Pressure Range: 10 – 2000 hPa (mbar)
- Pressure Accuracy: ±1 Pa (high resolution mode)
- Temperature Range: -40°C to +85°C
- Temperature Accuracy: ±0.2°C typical
- Interface: I²C (up to 3.4 MHz) and SPI (up to 10 MHz)
- Operating Voltage: 1.7V – 3.6V
- Current Consumption:
- Standby: ~0.5 µA
- Active: ~7.0 µA (at 1 Hz sampling)
- Output Resolution: 24-bit ADC for both pressure and temperature
- Dimensions: Sensor size ~3 mm × 3 mm; module varies (~15 mm × 10 mm)
- Weather monitoring and forecasting
- Altitude tracking for drones or wearables
- Indoor navigation and floor detection
- Barometric compensation in GPS systems
- IoT environmental sensing
- Compact embedded designs requiring precise pressure data
