Description

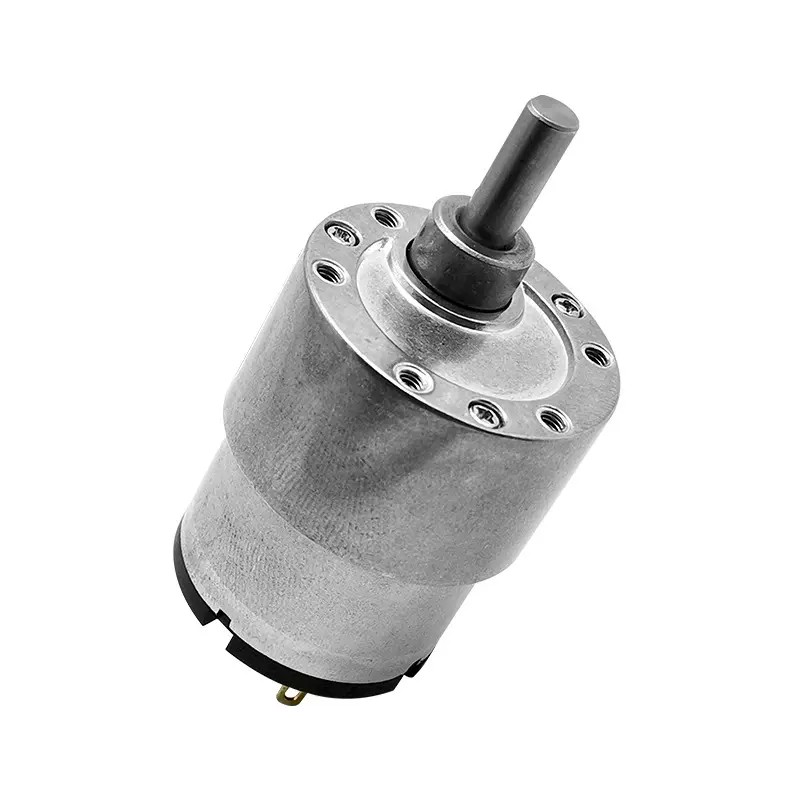

The JGB37-520 12V DC Geared Motor (330RPM) is a compact high-torque brushed DC motor designed with an integrated all-metal gearbox for stable, efficient, and long-lasting performance. Featuring a 30:1 reduction ratio, this motor delivers increased torque with controlled rotational speed, making it suitable for robotics, automation systems, smart devices, and mechanical drive applications.
Key Features
- High Torque Output: 30:1 metal gearbox provides enhanced torque for load-bearing applications
- 330 RPM Speed: Balanced speed for responsive and controlled motion
- Integrated Metal Gearbox: Durable construction for improved reliability and long operational life
- 12V DC Operation: Compatible with common DC power systems and batteries
- Smooth & Stable Rotation: Designed for consistent mechanical performance
- Compact Design: Easy integration into robotics and embedded mechanical systems
- Versatile Applications: Suitable for automation, smart devices, and DIY projects
Specification
- Model: JGB37-520 / 520R30-12
- Motor Type: Brushed DC geared motor
- Rated Voltage: 12V DC
- Gear Reduction Ratio: 30:1
- No-Load Speed: 330 RPM
- Output Shaft Type: D-shaped shaft
- Shaft Diameter: 6 mm
- Gearbox Material: Metal gears
- Motor Diameter: ~37 mm
- Motor Length: ~65 mm
- Mounting Type: Standard M3 mounting holes
- Weight: ~200 g
- Rotation Direction: CW/CCW reversible by polarity change
Applications
- DIY robotics and robotic car platforms
- Smart locks and access control systems
- Conveyor and automation mechanisms
- Motorized camera sliders and turntables
- Vending machines and dispensing systems
- Educational and embedded system projects
- Small mechanical drive systems
