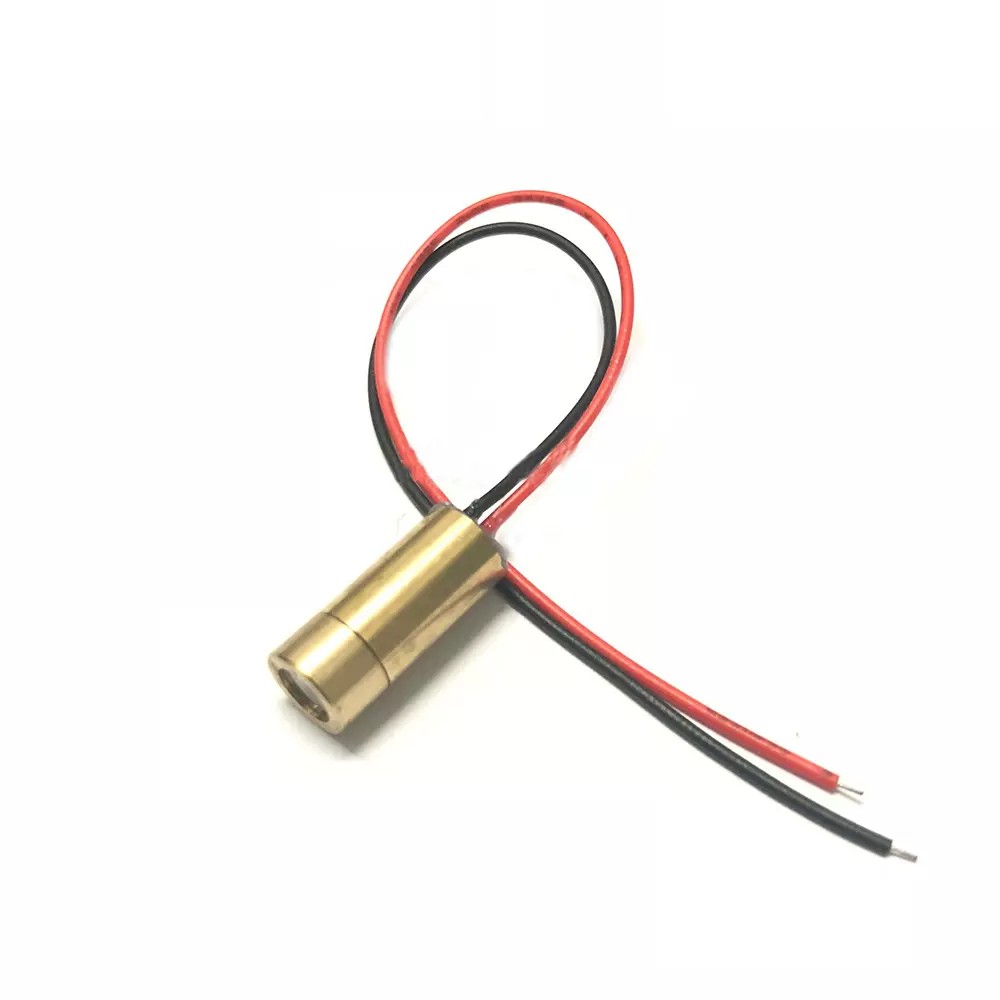

9mm laser head line
The 9mm Laser Line Module emits a focused red laser beam in a straight line, designed for precise visual alignment. Compact and easy to integrate, it is suitable for leveling, positioning, machine vision, and DIY optical guidance systems.
Key Features:
- Line Projection: Emits a clear red laser line
- Compact Form: 9mm diameter housing for tight spaces
- Constant Output: Stable brightness and shape
- Low Power Use: Operates efficiently at low voltage
- Easy Integration: Simple 2-wire connection
- Focused Alignment: Ideal for visual positioning tasks
- Durable Build: Metal casing with good heat dissipation
- Model: 9mm Laser Line Head
- Laser Type: Red laser (Class IIIa)
- Wavelength: 650 nm (typical)
- Projection: Straight laser line
- Operating Voltage: 3V – 5V DC
- Output Power: ≤5 mW
- Lens Type: Line-generating lens
- Current Consumption: ≤30 mA
- Housing Diameter: 9 mm
- Connection: 2-pin (VCC, GND)
- Material: Metal casing
- Laser alignment and leveling tools
- CNC or cutting machine guides
- Visual reference lines in robotics
- Optical positioning in assembly systems
- DIY laser measurement or light projection systems
