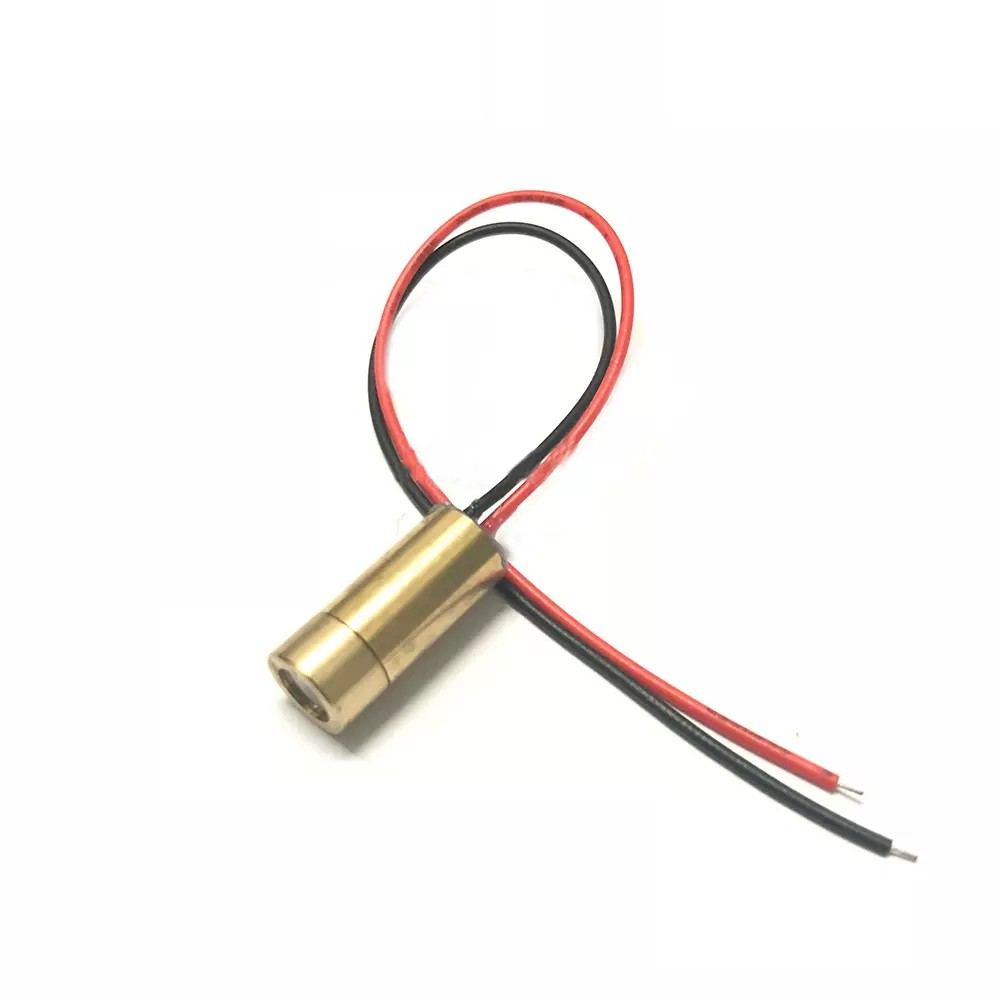

9mm laser head cross
The 9mm Laser Cross Head is a precision laser emitter that projects a sharp cross pattern using optical lenses. Designed for compact optical setups, it's ideal for alignment, positioning, and guiding applications where dual-axis referencing is required.
Key Features:
- Cross Projection: Emits clear intersecting horizontal and vertical lines
- Compact Size: 9mm diameter for space-limited integration
- Consistent Beam: Stable pattern under continuous operation
- Direct Drive Ready: Works with external laser driver circuits
- Precision Lens: Formed optical glass for sharp focus
- Durable Body: Metal enclosure ensures long-term use
- Type: 9mm Cross Laser Head (bare laser emitter)
- Wavelength: 650 nm (red laser)
- Beam Pattern: Cross (90° intersection)
- Operating Voltage: 3V – 5V DC (requires external driver)
- Output Power: ≤5 mW
- Current Draw: ~20–30 mA (with proper driver)
- Focus Type: Fixed or adjustable (model dependent)
- Lens: Line-generating optical lens
- Casing Diameter: 9 mm
- Connection: 2-pin lead wires
- Visual alignment in tools and jigs
- Marking systems for cutting/sewing machines
- Optical targeting in robotics
- DIY laser measuring and level indicators
- Crosshair projection in industrial guides
