Description

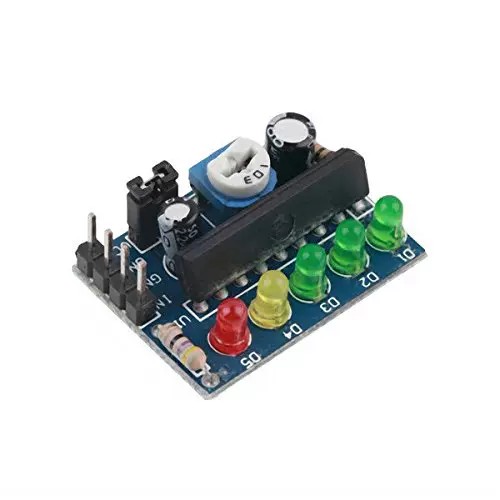

The KA2284 module is a compact audio signal level indicator designed for visualizing the amplitude of AC or DC signals through LED bars. It supports adjustable sensitivity and jumper-selectable signal modes, making it ideal for battery indicators, audio visualization, and signal testing tools.
Key Features
- Signal Mode Switch: Supports both AC and DC signals
- Adjustable Sensitivity: Fine-tune amplitude detection
- LED Level Display: Visual feedback for voltage or audio signals
- Wide Supply Range: Operates from 3.5V to 12V
- Compact Size: Ideal for integration into small systems
Specification
Model: KA2284 Module
Chipset: KA2284
Supply Voltage: 3.5V – 12V
Signal Type: AC or DC (jumper selectable)
Adjustable Range: Manual amplitude adjustment supported
Display: LED bar output (not included on all versions)
PCB Size: 29 mm × 21 mm × 10 mm
Weight: ~4 g
