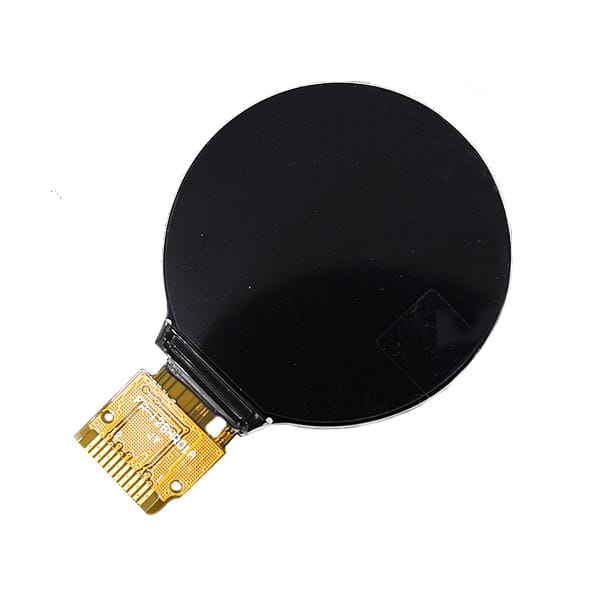

This 1.28-inch round LCD display module features a full-color 240×240 pixel resolution, powered by the GC9A01 driver and SPI interface. With its IPS technology, it offers vibrant visuals and wide viewing angles. Operating on 3–5V, it's an excellent choice for wearables, smart interfaces, and compact embedded systems where aesthetics and clarity matter.

Key Features

  • High-resolution display: 240 × 240 pixel round screen

  • Full-color IPS panel: Brilliant colors with wide viewing angles

  • GC9A01 driver: Reliable performance with SPI communication

  • Compact square PCB: Easy mounting and integration

  • Voltage flexibility: Operates on 3V to 5V systems

  • Wide temperature range: Reliable from -20°C to 70°C

Specifications

  • Display Size: 1.28 inch (round)

  • Resolution: 240 × 240 pixels

  • Driver Chip: GC9A01

  • Interface: SPI

  • Color Format: Full-color RGB

  • Display Area: 32.4 × 32.4 mm

  • Module Dimensions: 38 × 45.5 × 3.2 mm

  • Operating Voltage: 3.0V to 5.0V

  • Viewing Angle: IPS wide angle

  • Operating Temperature: -20°C to +70°C

Applications

  • Smartwatches and wearable displays

  • DIY gauges and status monitors

  • Compact user interfaces for IoT devices

  • Portable meters and test equipment

  • Artistic or modern visual display projects
